KQ2 Series Jednodotykové kovanie Dodávatelia

Domov / Produkty / Pneumatické príslušenstvo / Jednodotyková montáž / KQ2 Series Jednodotykové kovanie

KQ2 Series Jednodotykové kovanie KQ2 Series Jednodotykové kovanie
  • KQ2 Series Jednodotykové kovanie
  • KQ2 Series Jednodotykové kovanie
Jednodotyková montáž

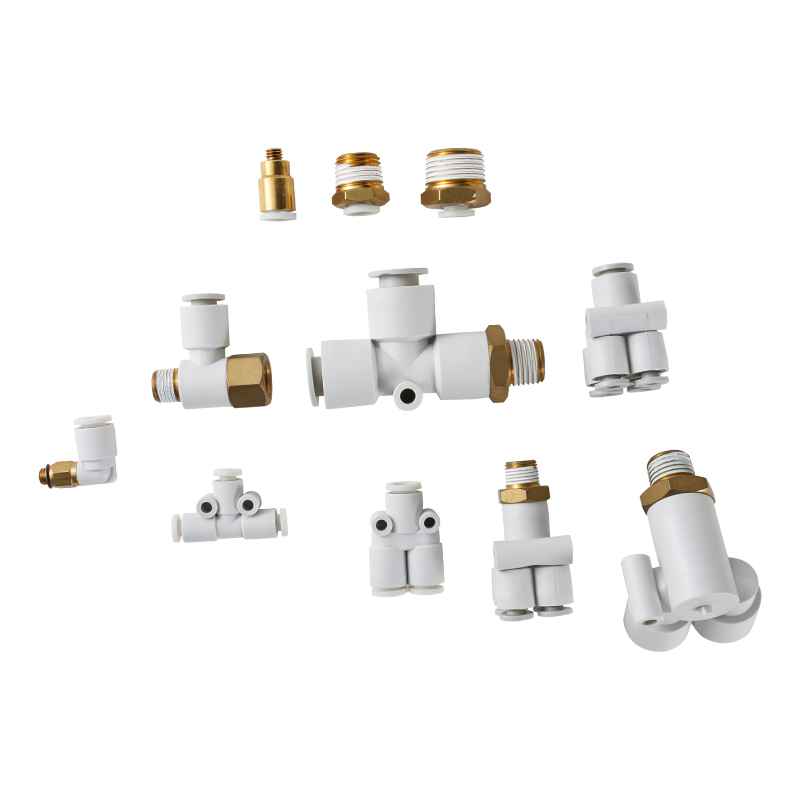

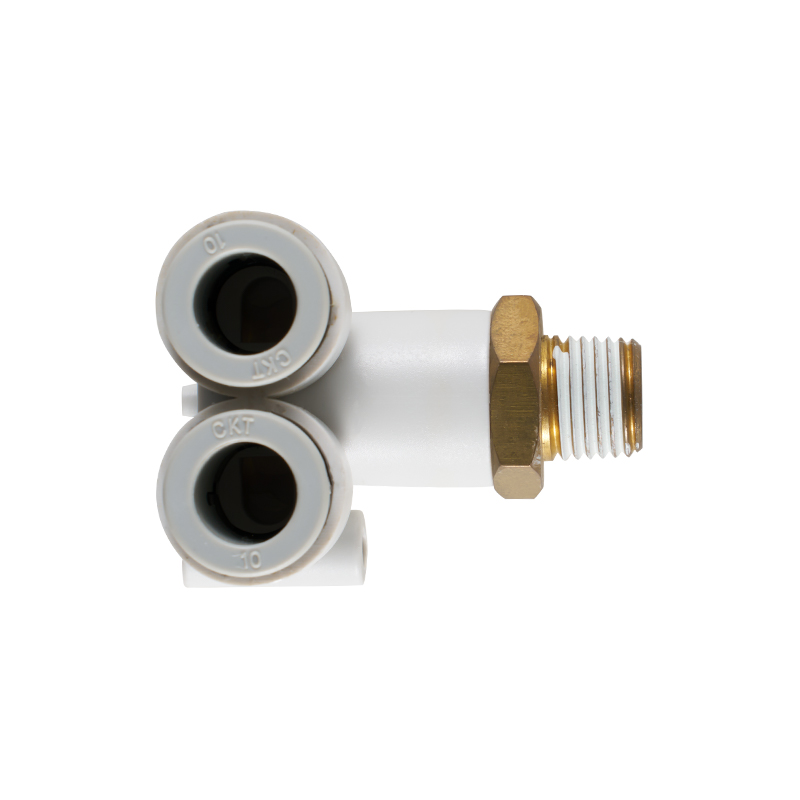

KQ2 Series Jednodotykové kovanie

Jednodotyková armatúra série KQ2 je základným komponentom navrhnutým na zjednodušenie operácií pripájania kvapalinového potrubia. Jeho hlavná konštrukčná koncepcia sa zameriava na dosiahnutie rýchlej a jednoduchej inštalácie a odstraňovania procesov pri zabezpečení stability a celistvosti tesnenia spojenia a je vhodná pre rôzne scenáre prenosu tekutín.

Základné pohodlie: Pozoruhodnou vlastnosťou tejto série je jej jednokrokový operačný mechanizmus, ktorý zvyčajne vyžaduje iba jedno stlačenie na dokončenie spoľahlivého vloženia potrubnej tvarovky a vytvorenie účinného tesnenia, čo výrazne zjednodušuje proces inštalácie.

Spoľahlivosť pripojenia: Konštrukcia má zabudovanú presnú uzamykaciu štruktúru, ktorá sa automaticky uzamkne po správnom vložení potrubnej tvarovky, čím účinne zabraňuje náhodnému uvoľneniu pri vibráciách, kolísaní tlaku alebo náhodnému potiahnutiu a zaisťuje dlhodobú stabilitu miesta pripojenia.

Záruka tesnenia: Integrované a optimalizované tesniace komponenty môžu poskytovať nepretržitý a efektívny tesniaci výkon v rámci špecifikovaných podmienok použitia a rozsahu kompatibility kvapalín, čím sa znižuje riziko úniku.

Široká prispôsobivosť: Pri konštrukcii a výbere materiálu sa berie do úvahy kompatibilita a môže sa prispôsobiť rôznym bežným špecifikáciám a typom rúr, aby vyhovovali základným potrebám konštrukcie rôznych kvapalinových systémov.

Pohodlná údržba: Pohodlný uvoľňovací mechanizmus je navrhnutý tak, aby v prípade potreby umožňoval rýchle a nedeštruktívne odstránenie potrubí, čím uľahčuje kontrolu systému, údržbu alebo reorganizáciu a zlepšuje následnú efektivitu údržby.

E-mail: manager@cktworld.com
Stiahnuť
PREDCHÁDZAJÚCI:Séria KC Samotesniace kovanie jedným dotykom
ĎALŠÍ:Žiadny ďalší článok
  • Tekutina Vzduch /Voda
    Materiál Mosadz
    Max Prevádzkové Tlak 1,0 MPa
    Vákuum Tlak -100 kPa
    Dôkaz Tlak 3,0 MPa
    Prevádzkové Teplota Rozsah Vzduch:-5~60℃,Water:0~40℃
    Použiteľné Hadičky Materiál Nylon, uretán
    Použiteľné Kovanie Veľkosť Ø4,Ø6,Ø8,Ø10,Ø12,Ø16

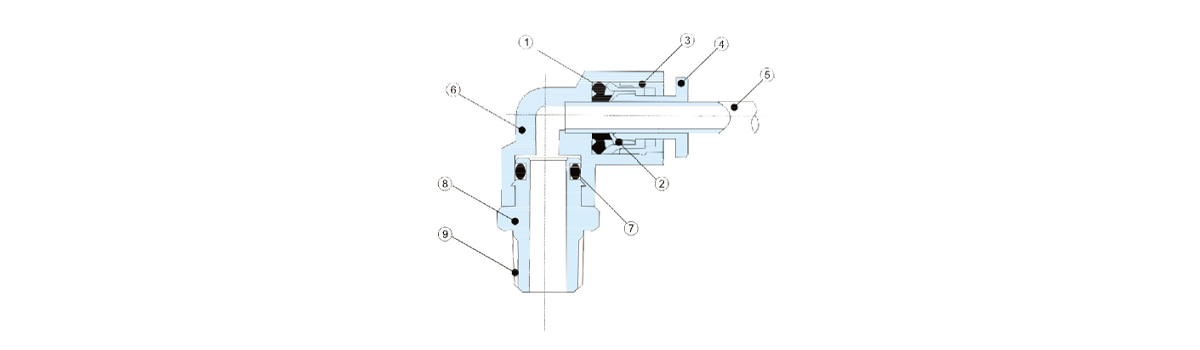

  • ① Seal NBR
    ② Chuck Stainless Steel
    ③ Guide Stainless Steel Or Brass
    ④ Release Button POM
    ⑤ Tubing Nylon Or Urethane
    ⑥ Body PBT
    ⑦ O ring NBR
    ⑧ Material Body Brass
    ⑨ Thread M/R/Rc

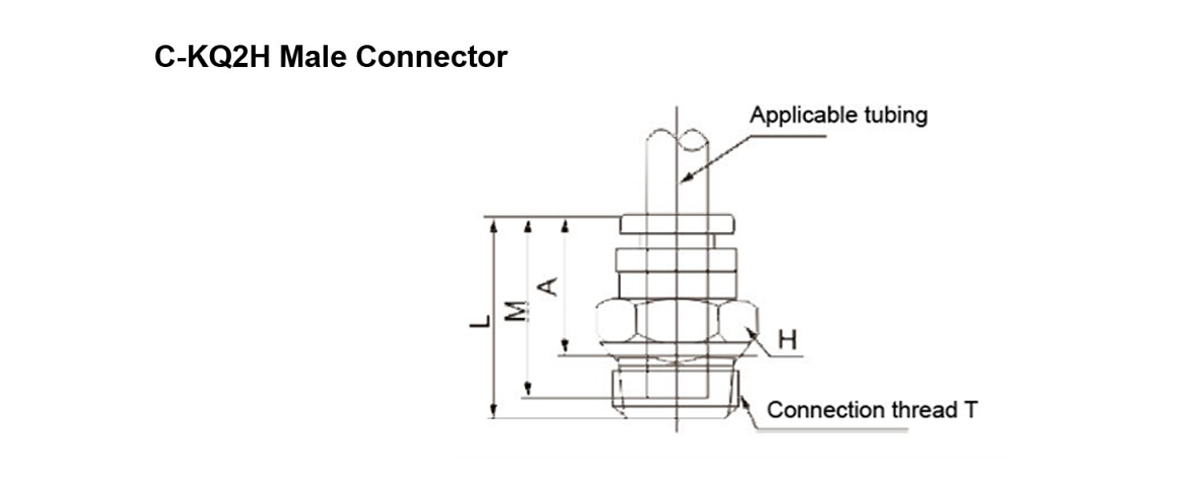

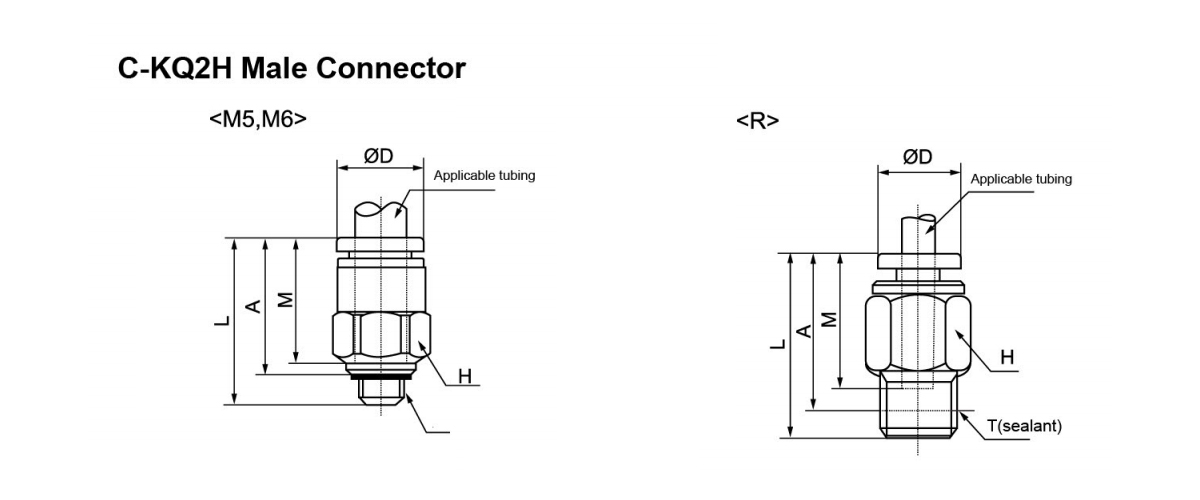

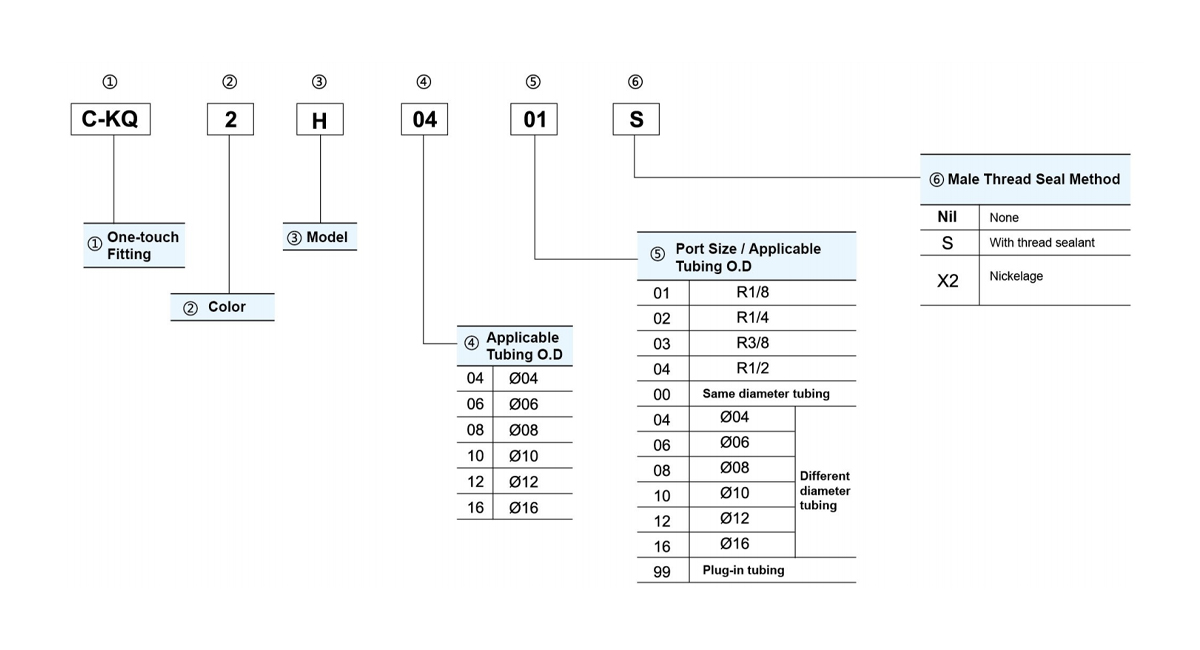

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-01S 1/8 10 - 22 18 16 5.6 4 9
    C-KQ2H04-02S 1/4 14 - 19.5 13.5 16
    Ø6 C-KQ2H06-01S 1/8 12 - 22.5 18.5 17 13.1 10.4 16
    C-KQ2H06-02S 1/4 14 - 23 17 14
    C-KQ2H06-03S 3/8 17 - 22 15.5 27
    Ø8 C-KQ2H08-01S 1/8 14 - 28 24 18.5 26.1 18.0 21
    C-KQ2H08-02S 1/4 26.5 20.5 19
    C-KQ2H08-03S 3/8 17 - 22 15.5 26
    Ø10 C-KQ2H10-01S 1/8 17 - 30 26 21 26.1 26.1 19
    C-KQ2H10-02S 1/4 33.5 27.5 41.5 29.5 30
    C-KQ2H10-03S 3/8 29 22.5 30
    C-KQ2H10-04S 1/2 22 - 27 19 53
    Ø12 C-KQ2H12-02S 1/4 19 - 34.5 28.5 22 58.3 46.1 42
    C-KQ2H12-03S 3/8 30 23.5 34
    C-KQ2H12-04S 1/2 22 - 22 51
    Ø16 C-KQ2H16-03S 3/8 24 25.7 39.5 33 25 81 (81) 61
    C-KQ2H16-04S 1/2 35.5 27.5 113 (96) 47

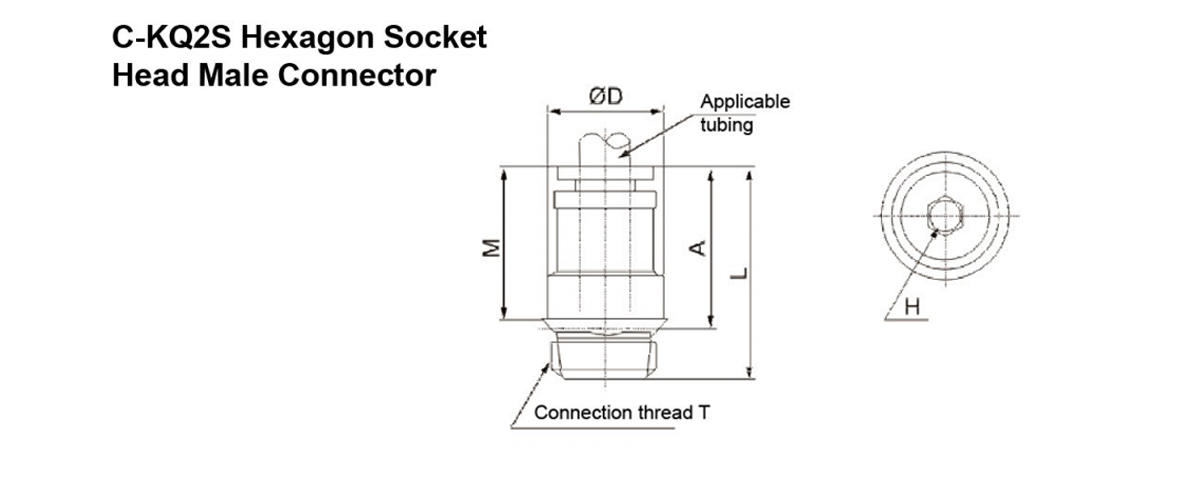

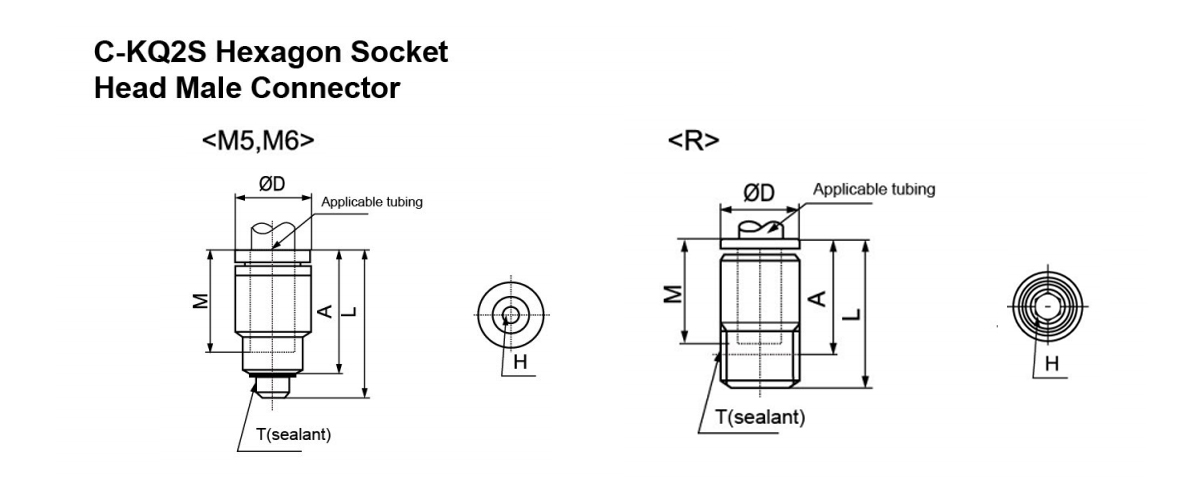

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-01S 1/8 3 9.8 23 19 16 4.1 3.6 8
    Ø6 C-KQ2S06-01S 1/8 4 11.8 24 20 17 10.0 9.9 9
    C-KQ2S06-02S 1/4 13.8 24 18 10.7 10.0 15
    Ø8 C-KQ2S08-01S 1/8 5 14 28 24 18.5 17.2 16.2 12
    C-KQ2S08-02S 1/4 6 25.5 19.5 23.3 11
    C-KQ2S08-03S 3/8 17 27.5 21 24
    Ø10 C-KQ2S10-01S 1/8 5 17 30 26 21 17.2 16.2 18
    C-KQ2S10-02S 1/4 8 27.5 21.5 39.0 26.6 12
    C-KQ2S10-03S 3/8 21 19
    C-KQ2S10-04S 1/2 22 28 20 35
    Ø12 C-KQ2S12-02S 1/4 8 19 33.5 27.5 22 46.0 44.5 23
    C-KQ2S13-03S 3/8 10 29 22.5 60.0 18
    C-KQ2S12-04S 1/2 22 28 20 30
    Ø16 C-KQ2S16-03S 3/8 10 25.7 39 32.5 25 81 (81) 42
    C-KQ2S16-04S 1/2 12 35 27 113 (96) 34

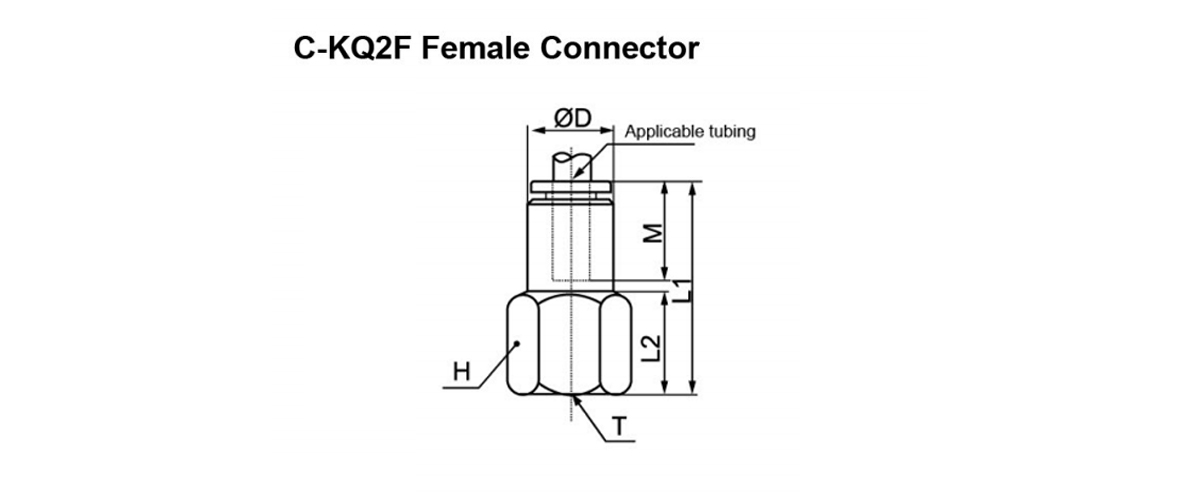

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2F04-01 1/8 14 10 27 11 16 5.6 4 15
    C-KQ2F04-02 1/4 17 31 14 23
    Ø6 C-KQ2F06-01 1/8 14 12 27.5 11 17 13.1 10.4 15
    C-KQ2F06-02 1/4 17 31 13 22
    C-KQ2F06-03 3/8 19 33.5 15 25
    Ø8 C-KQ2F08-01 1/8 14 14 29 11 18.5 26.1 18.0 17
    C-KQ2F08-02 1/4 17 32.5 13 24
    C-KQ2F08-03 3/8 19 33.5 14 24
    Ø10 C-KQ2F10-02 1/4 17 17 34.5 14 21 41.5 29.5 27
    C-KQ2F10-03 3/8 19 36.5 15 30
    Ø12 C-KQ2F12-02 1/4 19 19 35 14 22 58.3 46.1 36
    C-KQ2F12-03 3/8 37 31
    C-KQ2F12-04 1/2 24 41 18 52
    Ø16 C-KQ2F16-03 3/8 24 25.7 38 15 25 81 (81) 59
    C-KQ2F16-04 1/2 43 19 113 (96) 58

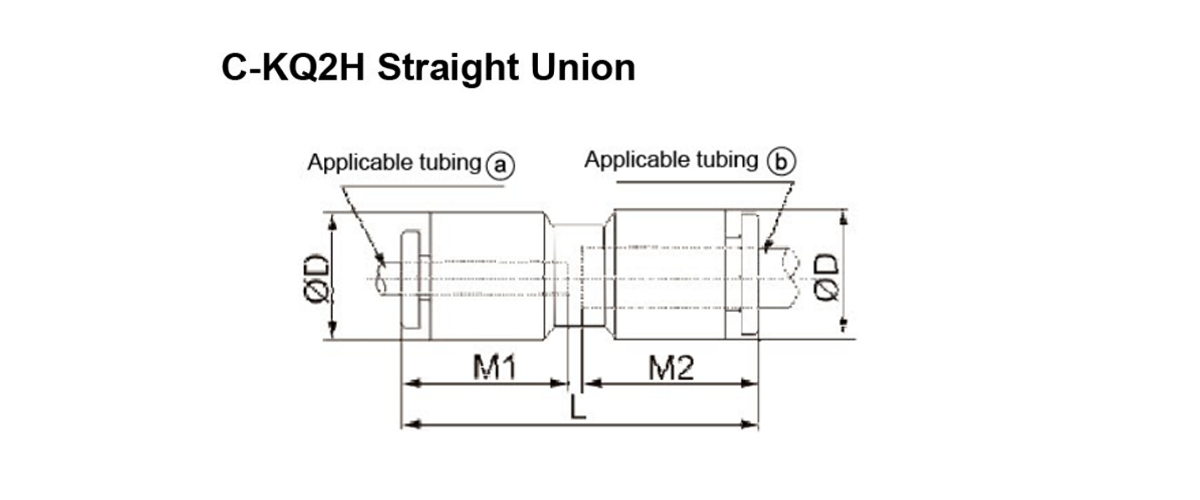

    Applicable Tubing O.D
    (mm)     		Model ØD L M Effective Area
    (mm²)
    Weight
    (g )
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2H04-00 10.4 32.5 16 5.6 4 3
    Ø6 C-KQ2H06-00 12.8 34.5 17 13.1 10.4 4
    Ø8 C-KQ2H08-00 15.2 38.5 18.5 26.1 18.0 6
    Ø10 C-KQ2H10-00 18.5 42.5 21 41.5 29.5 11
    Ø12 C-KQ2H12-00 20.9 44.5 22 58.3 46.1 14
    Ø16 C-KQ2H16-00 26.5 51 25 113 (96) 24
    Ø4 Ø6 C-KQ2H04-06 12.8 34.5 16 17 5.6 5.6 5
    Ø6 Ø8 C-KQ2H06-08 15.2 38.5 17 18.5 13.1 10.4 6
    Ø8 Ø10 C-KQ2H08-10 18.5 42 18.5 21 26.1 18.0 11
    Ø10 Ø12 C-KQ2H10-12 20.9 44.5 21 22 41.5 29.5 14
    Ø12 Ø16 C-KQ2H12-16 26.5 56.5 22 25 58.3 46.1 47

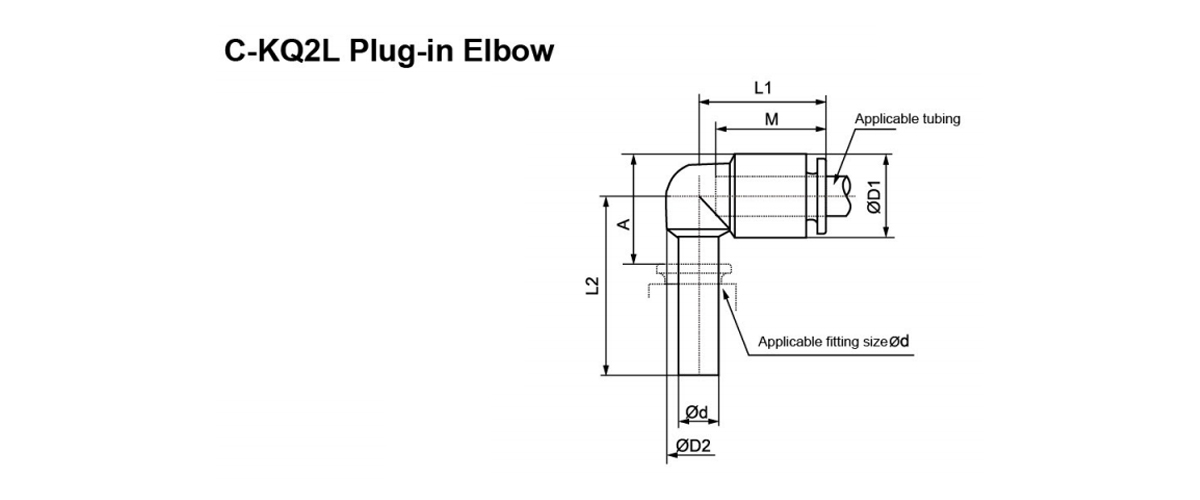

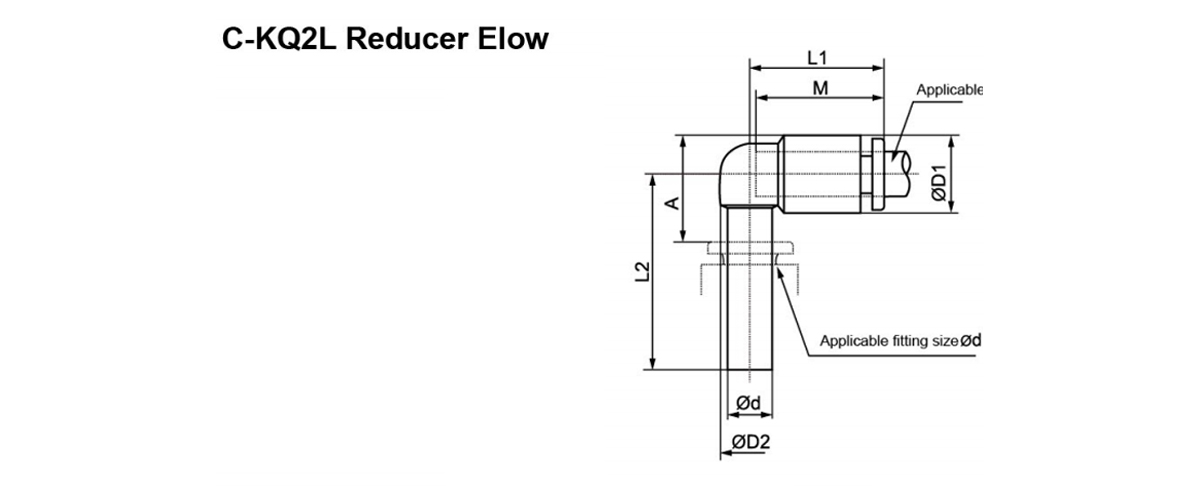

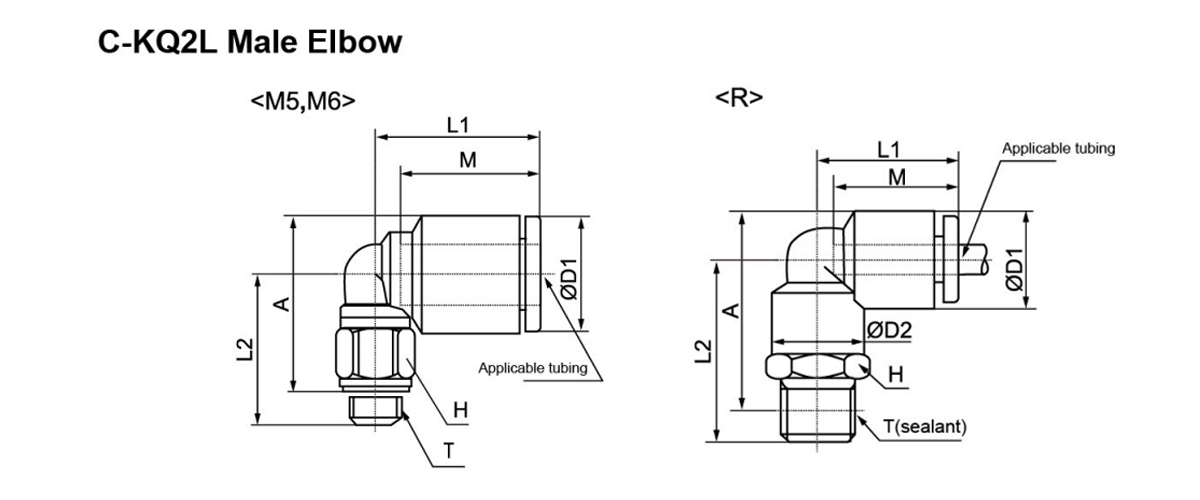

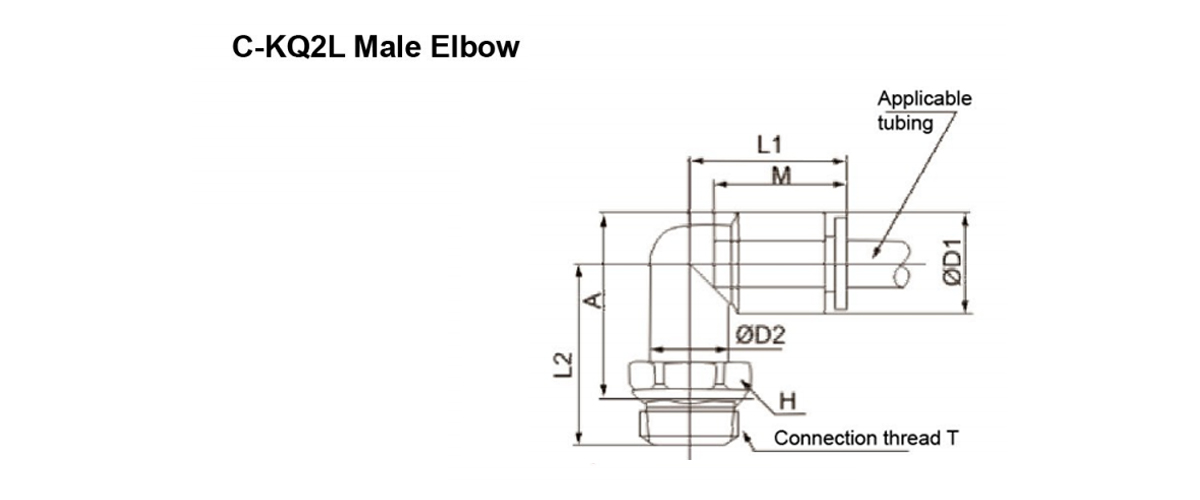

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-01S 1/8 10 10.4 10 18 22 23 16 4.2 4.2 10
    C-KQ2L04-02S 1/4 14 26 25 19
    Ø6 C-KQ2L06-01S 1/8 10 12.8 10 20 23 25.5 17 11.4 9.0 12
    C-KQ2L06-02S 1/4 14 27 27.5 22
    C-KQ2L06-03S 3/8 17 29 29 33
    Ø8 C-KQ2L08-01S 1/8 12 15.2 12 23 24.5 28 18.5 21.6 14.9 13
    C-KQ2L08-02S 1/4 14 28.5 30 21
    C-KQ2L08-03S 3/8 17 30.5 31.5 35
    Ø10 C-KQ2L10-01S 1/8 17 18.5 17 26.5 27 32 21 21.6 14.9 25
    C-KQ2L10-02S 1/4 30 33 35.2 25.0 26
    C-KQ2L10-03S 3/8 32 34.5 36
    C-KQ2L10-04S 1/2 22 36 37 63
    Ø12 C-KQ2L12-02S 1/4 17 20.9 17 28.5 31 35.5 22 50.2 39.7 28
    C-KQ2L12-03S 3/8 33 37 38
    C-KQ2L12-04S 1/2 22 37 39.5 65
    Ø16 C-KQ2L16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 (71) 101
    C-KQ2L16-04S 1/2 41 46 100 (84) 105

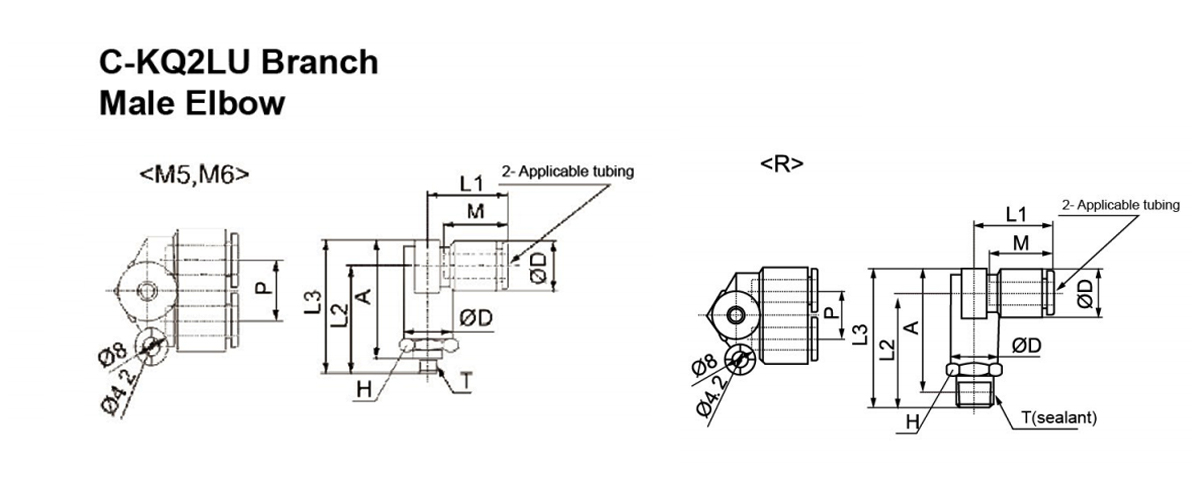

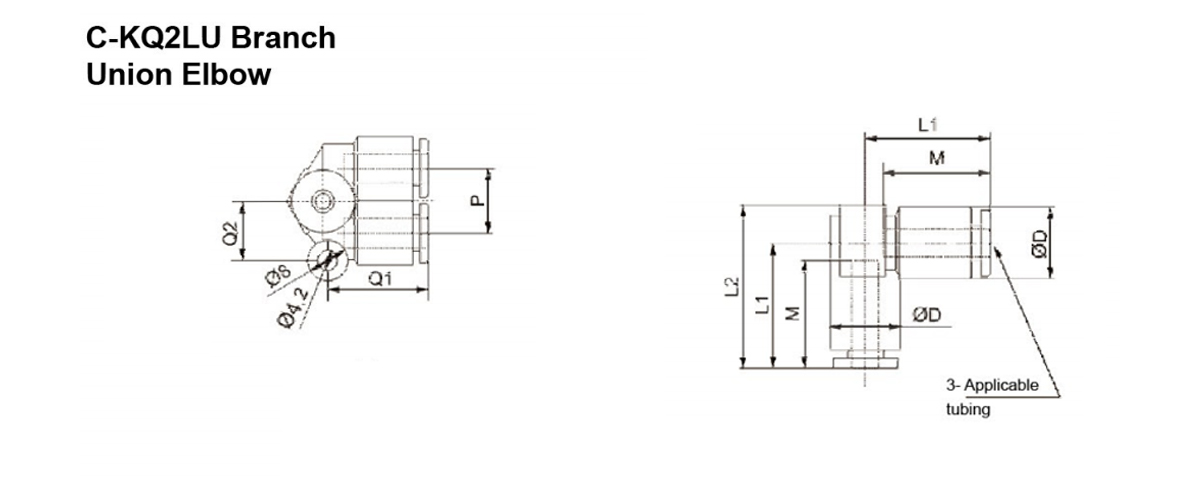

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-M5 M5×0.8 11 10.4 18.5 24 29.5 25.5 16 10.4 4.3 4.1 10
    C-KQ2LU04-M6 M6×1.0 24.5 30
    C-KQ2LU04-01S 1/8 26.5 32 27.5 6.0 4.1 12
    C-KQ2LU04-02S 1/4 14 30.5 36 30 21
    Ø6 C-KQ2LU06-M5 M5×0.8 13 12.8 21 26.5 33 29.5 17 12.8 4.3 4.3 13
    C-KQ2LU06-M6 M6×1.0 27 33.5
    C-KQ2LU06-01S 1/8 29.5 36 32 13.9 11.0 15
    C-KQ2LU06-02S 1/4 14 33 39.5 33.5 22
    C-KQ2LU06-03S 3/8 17 35 41.5 35 35
    Ø8 C-KQ2LU08-01S 1/8 17 15.2 24 34 41.5 38 18.5 15.2 26.3 18.2 27
    C-KQ2LU08-02S 1/4 37 44.5 38.5
    C-KQ2LU08-03S 3/8 38 45.5 39 35
    Ø10 C-KQ2LU10-02S 1/4 19 18.5 27 40 49.5 43.5 21 18.5 40.8 29.0 41
    C-KQ2LU10-03S 3/8 41 50.5 44 42
    C-KQ2LU10-04S 1/2 22 44.5 54 45.5 64
    Ø12 C-KQ2LU12-02S 1/4 22 20.9 29 42.5 53 47 22 20.9 57.2 45.2 57
    C-KQ2LU12-03S 3/8 43.5 54 47.5 58
    C-KQ2LU12-04S 1/2 46.5 57 49 65

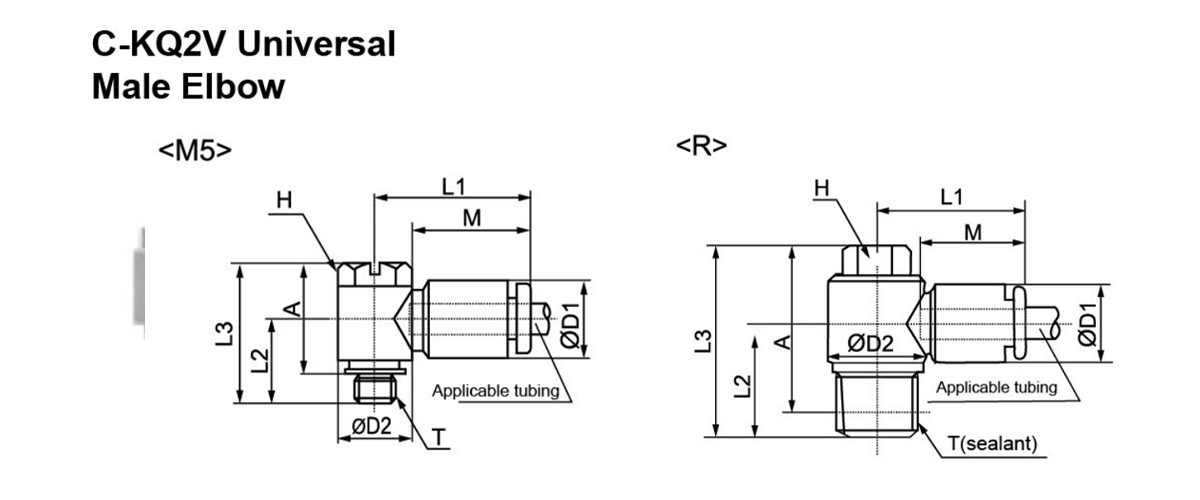

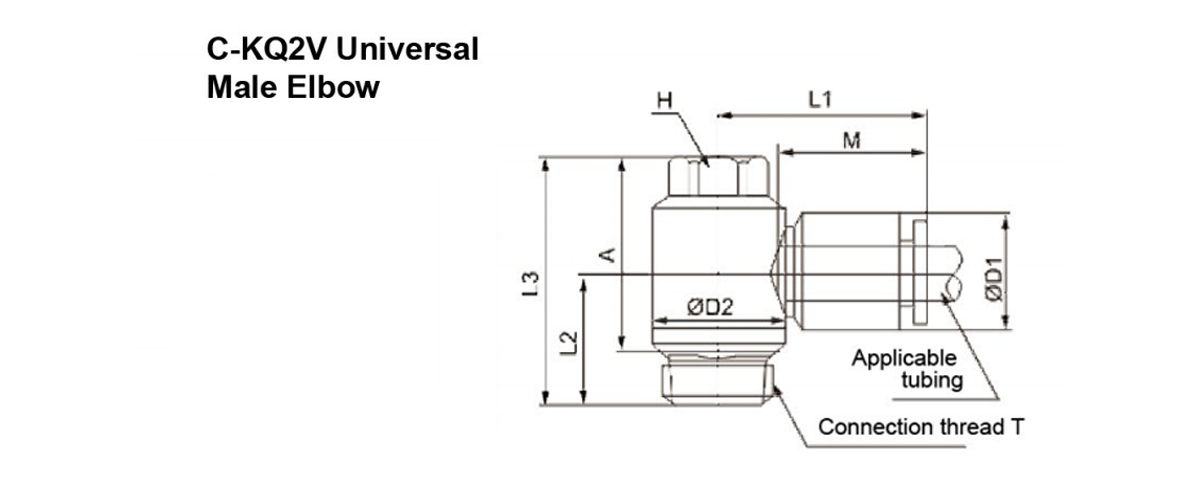

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)
    Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2V04-M5 M5×0.8 8 10.4 9.8 20.5 11 18.5 15 16 2.9 2.9 6
    C-KQ2V04-01S 1/8 13.4 22 14.5 26.5 22.5 14
    Ø6 C-LQ2V06-M5 M5×0.8 8 12.8 9.8 23.5 12 18.5 15 17 3.8 3.8 7
    C-KQ2V06-01S 1/8 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2V06-02S 1/4 10 15.4 23.5 18.5 31 25 26
    Ø8 C-KQ2V08-01S 1/8 12 15.2 17.6 28.5 15.5 28.5 24.5 18.5 16 11.2 24
    C-KQ2V08-02S 1/4 18.5 31.5 25.5 30
    C-KQ2V08-03S 3/8 14 20.6 27.5 20.5 36.5 30 20.5 14.3 47
    Ø10 C-KQ2V10-02S 1/4 14 18.5 20.6 31 195 35.5 29.5 21 27 20.3 40
    C-KQ2V10-03S 3/8 20.5 36.5 30 49
    Ø12 C-KQ2V12-03S 3/8 17 20.9 25.2 34 22 38.5 32 22 39 30.8 63
    C-KQ2V12-04S 1/2 25 41.5 33.5 80

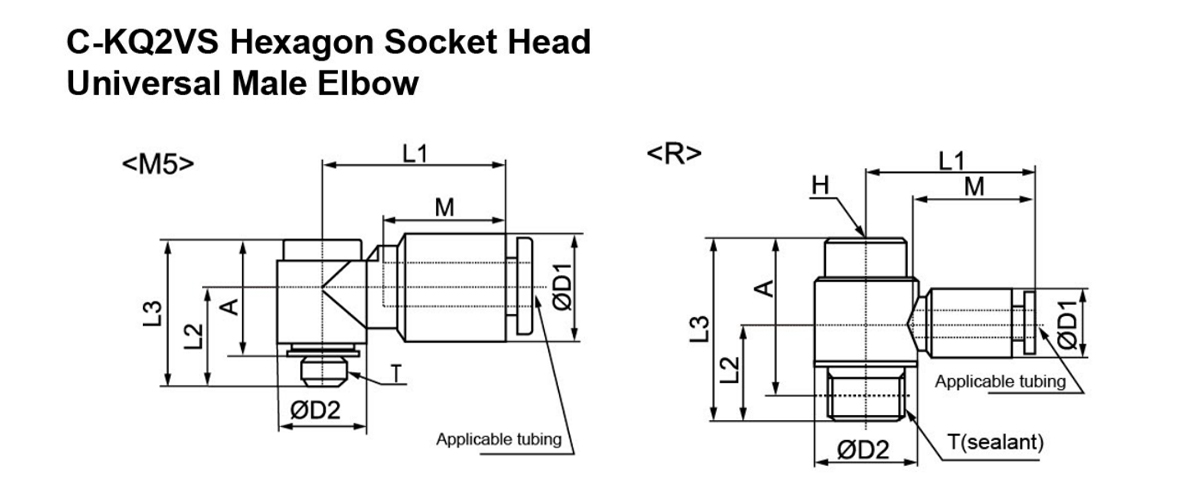

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T
    H
    Width
    across
    flats     		ØD1 ØD2 L1 L2 L3 A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2VS04-M5 M5 4 10.4 9.8 20.5 10.5 18 15 16 2.9 2.9 6
    C-KQ2VS04-01S 1/8 6 13.4 22 14.5 26.5 22.5 14
    Ø6 C-KQ2VS06-M5 M5 4 12.8 9.8 23.5 12 18 15 17 3.8 3.8 7
    C-KQ2VS06-01S 1/8 6 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2VS06-02S 1/4 15.3 23.5 18.5 27 21 22
    Ø8 C-KQ2VS08-01S 1/8 8 15.2 17.6 28.5 15.5 27 23 18.5 16 11.2 24
    C-KQ2VS08-02S 1/4 18.5 30 24 30
    C-KQ2VS08-03S 3/8 20.6 27.5 20.5 32.5 26 20.5 14.3 47
    Ø10 C-KQ2VS10-02S 1/4 8 18.5 20.6 31 19.5 31.5 25 21 27 20.3 32
    C-KQ2VS10-03S 3/8 20.5 32.5 26 39
    Ø12 C-KQ2VS12-03S 3/8 10 20.9 25.2 34 22 36 30 22 39 30.8 48
    C-KQ2VS12-04S 1/2 25 39 31 67

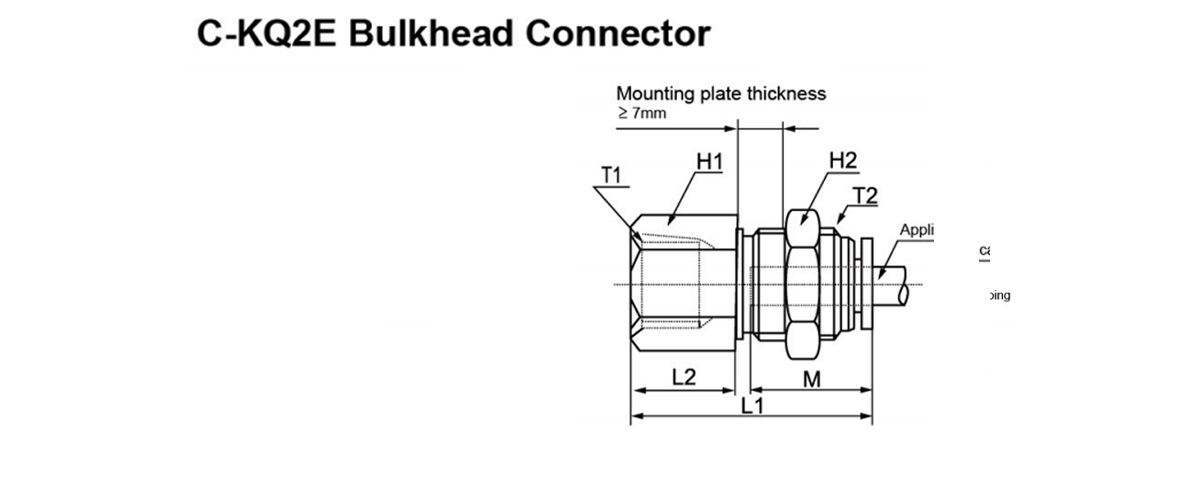

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T1 Mounting
    Thread
    T2     		H1
    Width
    Across
    Flats     		H2
    Width
    Across
    Flats     		L1 L2 Mount-
    ing Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2E04-01 1/8 M12×1 14 14 27.5 11 13 16 5.6 4 16
    C-KQ2E04-02 1/4 17 31 15 35
    Ø6 C-KQ2E06-01 1/8 M14×1 17 17 28 11 15 17 13.1 10.4 25
    C-KQ2E06-02 1/4 31.5 15 40
    C-KQ2E06-03 3/8 19 33.5 17 29
    Ø8 C-KQ2E08-01 1/8 M16×1 17 19 27.5 7.5 17 18.5 26.1 18.0 28
    C-KQ2E08-02 1/4 33 13 27
    C-KQ2E10-02 3/8 19 35 15 48
    Ø10 C-KQ2E10-02 1/4 M20×1 22 24 34.5 12.5 21 21 41.5 29.5 53
    C-KQ2E10-03 3/8 22 36.5 15 67
    Ø12 C-KQ2E12-03 3/8 M22×1 24 27 37 14 23 22 58.3 46.1 92
    C-KQ2E12-04 1/2 41 18 59
    Ø16 C-KQ2E16-03 3/8 M28×1.5 30 32 40 14 29 25 96 (96) 127
    C-KQ2E16-04 1/2 44 18 113 132

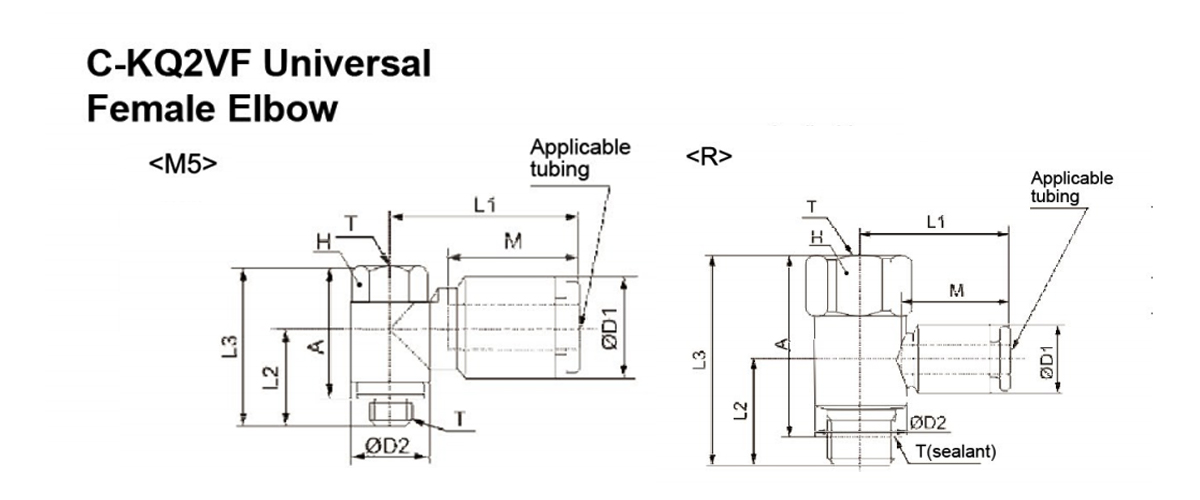

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Weight
    (g)
    Ø4 C-KQ2VF04-M5 M5×0.8 8 10.4 9.8 20.5 11 20 16 16 6
    C-KQ2VF04-01S 1/8 14 13.4 22 15.5 29.5 25.5 19
    Ø6 C-KQ2VF-06-M5 M5×0.8 8 12.8 9.8 23.5 12.5 20 16 17 7
    C-KQ2VF06-01S 1/8 14 13.4 24.5 15.5 29.5 25.5 19
    C-KQ2VF06-02S 1/4 17 17.6 25 20 38.5 32.5 36
    Ø8 C-KQ2VF08-01S 1/8 17 15.2 17.6 28.5 17 31 27 18.5 29
    C-KQ2VF08-02S 1/4 20 38.5 32.5 37
    C-KQ2VF08-03S 3/8 22 25.2 29.5 25.5 45.5 39 66
    Ø10 C-KQ2VF10-02S 1/4 19 18.5 20.6 31.5 22 41 35 21 48
    C-KQ2VF10-03S 3/8 22 25.2 24.5 45.5 39 68
    Ø12 C-KQ2VF12-03S 3/8 22 20.9 25.2 34 24.5 45.5 39 22 70

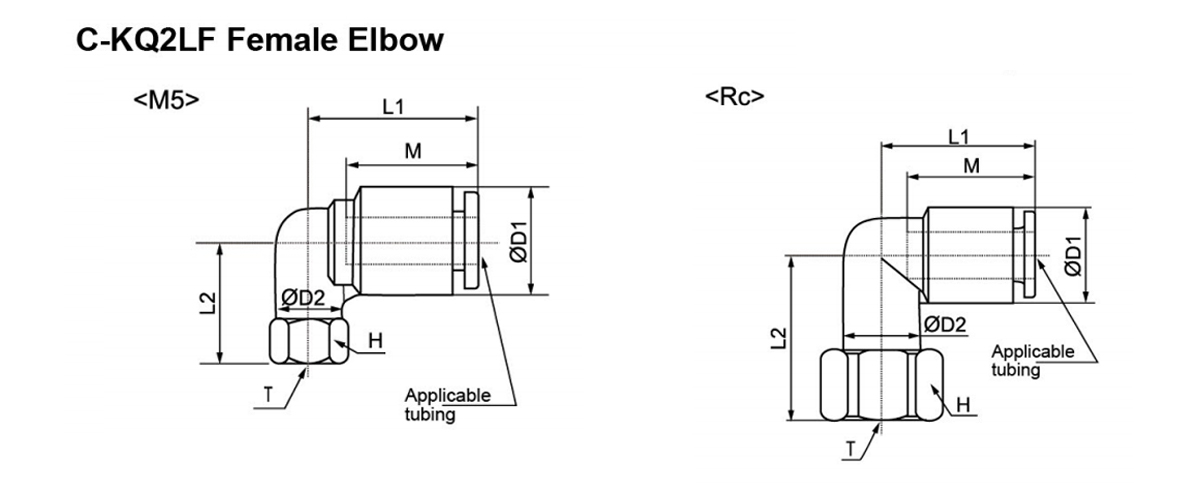

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LF04-M5 M5×0.8 8 10.4 8 18.5 14.5 16 3.5 3.5 5
    C-KQ2LF04-M6 M6×1.0 15.5
    C-KQ2LF04-01 1/8 14 10 21 4.2 4.2 13
    C-KQ2LF04-02 1/4 17 24.5 20
    Ø6 C-KQ2LF06-M5 M5×0.8 8 12.8 8 20.5 15 17 3.5 3.5 5
    C-KQ2LF06-M6 M6×1.0 16 6
    C-KQ2LF06-01 1/8 14 10 22 11.4 9.0 13
    C-KQ2LF06-02 1/4 17 25.5 20
    C-KQ2LF06-03 3/8 19 26
    Ø8 C-KQ2LF08-01 1/8 14 15.2 12 23.5 23 18.5 21.6 14.9 16
    C-KQ2LF08-02 1/4 17 26.5 22
    C-KQ2LF08-03 3/8 19 27 23
    Ø10 C-KQ2LF10-02 1/4 17 18.5 17 26.5 28 21 21.6 14.9 27
    C-KQ2LF10-03 3/8 19 28.5 35.2 25.0
    C-KQ2LF10-04 1/2 24 32.5 46
    Ø12 C-KQ2LF12-02 1/4 17 20.9 17 28.5 29.5 22 50.2 39.7 29
    C-KQ2LF12-03 3/8 19 30
    C-KQ2LF12-04 1/2 24 34 48

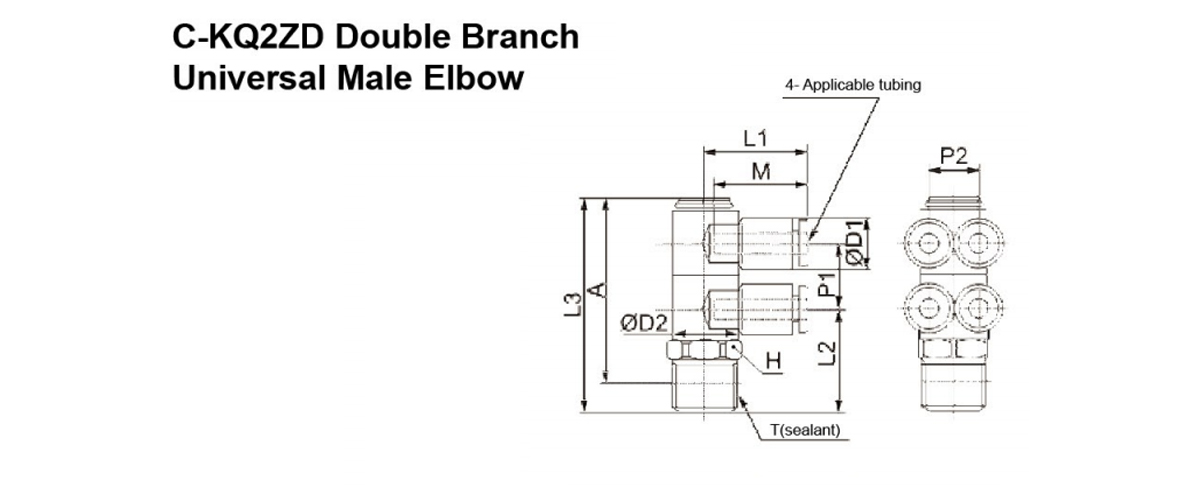

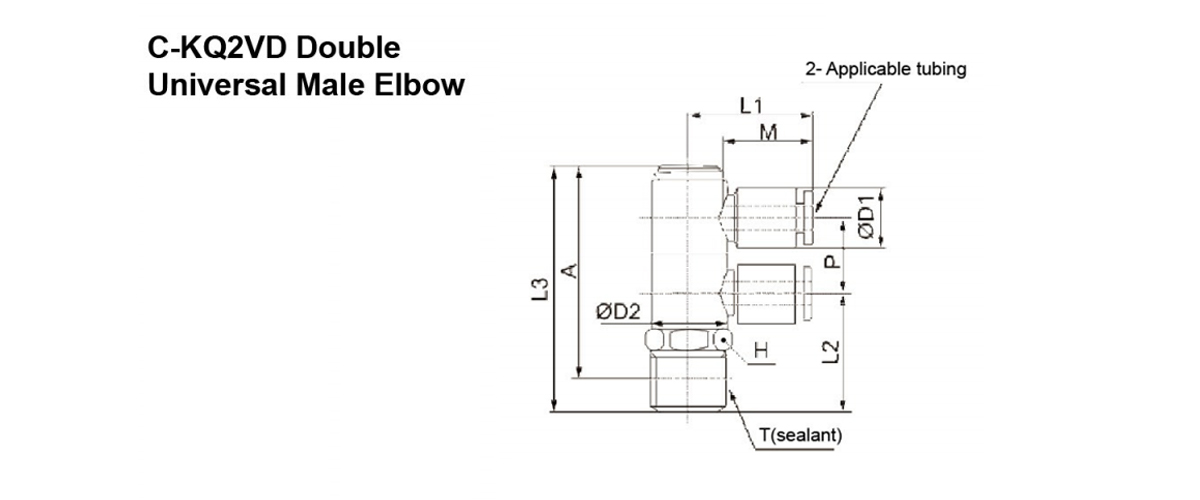

    Applicable Tubing O.D
    (mm)     		Model
    Connection Thread T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P
    Weight
    (g)
    Ø4 C-KQ2VD04-01S 1/8 14 10.4 13.4 22 18.5 41 37 16 13.4 23
    C-KQ2VD04-02S 1/4 21.5 44 38 29
    C-KQ2VD04-03S 3/8 17 23.5 46 40 42
    Ø6 C-KQ2VD06-01S 1/8 14 12.8 13.4 24.5 18.5 41 37 17 13.4 24
    C-KQ2VD06-02S 1/4 21.5 44 38 30
    C-KQ2VD06-03S 3/8 17 23.5 46 40 42
    Ø8 C-KQ2VD08-01S 1/8 19 15.2 17.6 28.5 21 48 44 18.5 15.9 53
    C-KQ2VD08-02S 1/4 24 51 45 51
    C-KQ2VD08-03S 3/8 25 52 45.5 60
    C-KQ2VD08-04S 1/2 21 28.5 55.5 47.5 82
    Ø10 C-KQ2VD10-02S 1/4 21 18.5 20.6 31.5 26.5 58 52 21 19.2 71
    C-KQ2VD10-03S 3/8 27.5 59 53 74
    C-KQ2VD10-04S 1/2 30.5 62 54 91
    Ø12 C-KQ2VD12-02S 1/4 26 20.9 25.2 34 28.5 64.5 58.5 21 21.6 118
    C-KQ2VD12-03S 3/8 29.5 65.5 59 113
    C-KQ2VD12-04S 1/2 32.5 68.5 60 125


    Applicable Tubing O.D
    (mm)     		Model Connection Thread
    T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)

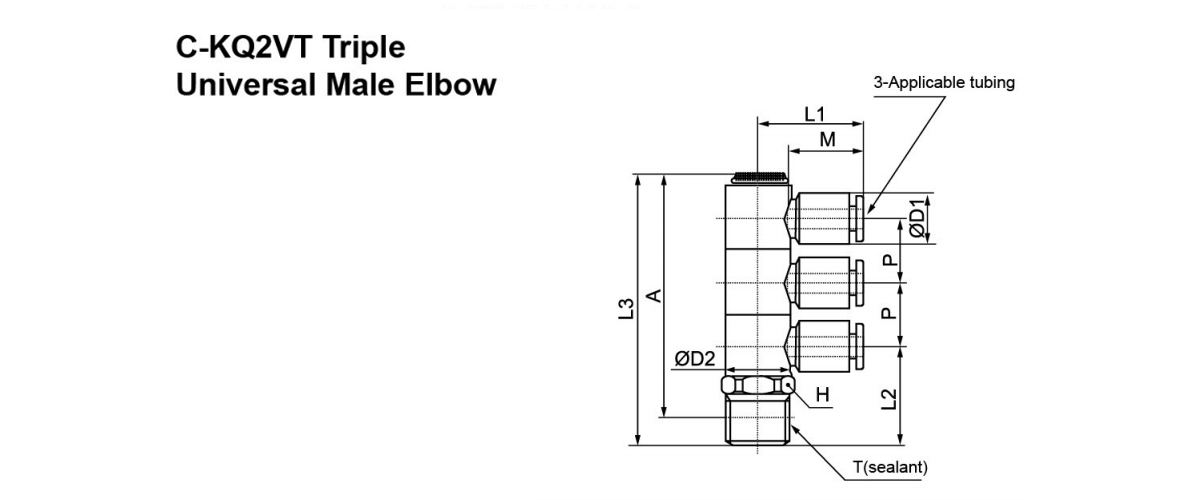

    Ø4 C-KQ2VT04-01S 1/8 14 10.4 13.4 22 18.5 54.5 50.5 16 13.4 29
    C-KQ2VT04-02S 1/4 21.5 57.5 51.5 34
    C-KQ2VT04-03S 3/8 17 23.5 59.5 53.5 48
    Ø6 C-KQ2VT06-01S 1/8 14 12.8 13.4 24.5 18.5 54.5 50.5 17 13.4 31
    C-KQ2VT06-02S 1/4 21.5 57.5 51.5 37
    C-KQ2VT06-03S 3/8 17 23.5 59.5 53.5 50
    Ø8 C-KQ2VT08-01S 1/8 19 15.2 17.6 28.5 21 64 60 18.5 15.9 71
    C-KQ2VT08-02S 1/4 24 67 61 66
    C-KQ2VT08-03S 3/8 25 68 61.5 75
    C-KQ2VT08-04S 1/2 21 28.5 71.5 63.5 96
    Ø10 C-KQ2VT10-02S 1/4 21 18.5 20.6 31.5 26.5 77.5 71.5 21 19.2 94
    C-KQ2VT10-03S 3/8 27.5 78.5 72
    C-KQ2VT10-04S 1/2 30.5 81.5 73.5 111
    Ø12 C-KQ2VT12-02S 1/4 26 20.9 25.2 34 28.5 86 80 21 21.6 153
    C-KQ2VT12-03S 3/8 29.5 87 80.5 143
    C-KQ2VT12-04S 1/2 32.5 90 82 154

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

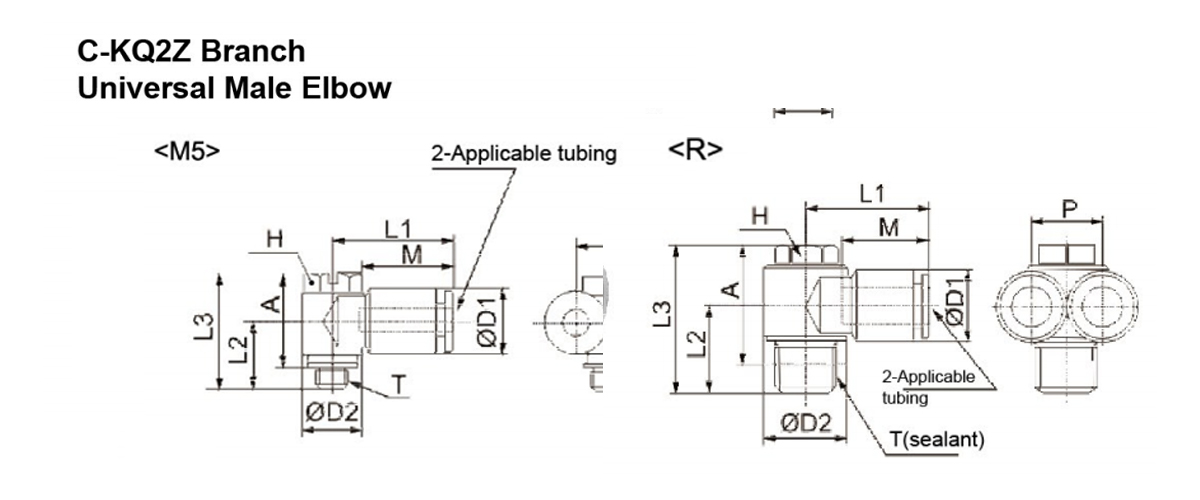

    Ø4 C-KQ2Z04-M5 M5×0.8 8 10.4 9.8 19.5 11 18.5 15 16 10.4 3.4 3.4 8
    C-KQ2Z04-01S 1/8 13.4 21 14.5 26.5 22.5 4.7 4.7 16
    Ø6 C-ZQ2Z06-01S 1/8 8 12.8 13.4 22 14.5 26.5 22.5 17 12.8 10.8 8.6 17
    C-ZQ2Z06-02S 1/4 14 20.6 25.5 19.5 35.5 29.5 39
    C-ZQ2Z06-03S 3/8 20.5 36.5 30 47
    Ø8 C-KQ2Z08-01S 1/8 12 15.2 17.6 26 15.5 28.5 24.5 18.5 15.2 20.5 14.2 27
    C-KQ2Z08-02S 1/4 18.5 31.5 25.5 33
    C-KQ2Z08-03S 3/8 14 20.6 27 20.5 36.5 30 49
    Ø10 C-KQ2Z10-02S 1/4 14 18.5 20.6 29 19.5 35.5 29.5 21 18.5 31.8 22.6 46
    C-KQ2Z10-03S 3/8 20.5 36.5 30 54
    Ø12 C-KQ2Z12-02S 3/8 17 20.9 25.2 32.5 22 39 32.5 22 20.9 44.6 35.3 71
    C-KQ2Z12-04S 1/2 25 42 34 88

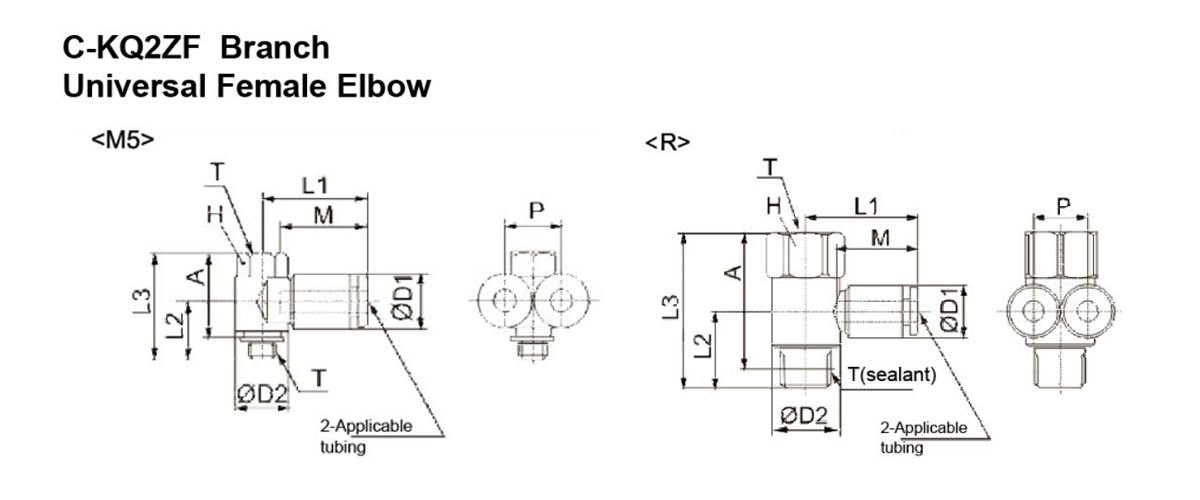

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2ZF04-M5 M5×0.8 8 10.4 9.8 19.5 11 20 16.5 16 10.4 8
    C-KQ2ZF04-01S 1/8 14 13.4 21 15.5 29.5 25.5 21
    Ø6 C-KQ2ZF06-01S 1/8 14 12.8 13.4 22 15.5 29.5 25.5 17 12.8 21
    C-KQ2ZF06-02S 1/4 19 20.6 25.5 22 41 35 47
    Ø8 C-KQ2ZF08-01S 1/8 17 15.2 17.6 25.5 17 31 27 18.5 15.2 32
    C-KQ2ZF08-02S 1/4 19 20.6 27 22 41 35 49
    Ø10 C-KQ2ZF10-02S 1/4 19 18.5 20.6 29 22 41 35 21 18.5 54
    C-KQ2ZF10-03S 3/8 22 25.2 31.5 24.5 45.5 39 74
    Ø12 C-KQ2ZF12-03S 3/8 22 20.9 25.2 32.5 24.5 45.5 39 22 20.9 77


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2 Weight
    (g)
    Ø4 C-KQ2ZD04-01S 1/8 14 10.4 13.4 21 18.5 41 37 16 13.4 10.4 34
    C-KQ2ZD04-02S 1/4 21.5 44 38 40
    C-KQ2ZD04-03S 3/8 17 23.5 46 40 53
    Ø6 C-KQ2ZD06-01S 1/8 14 12.8 13.4 22 18.5 41 37 17 13.4 12.8 38
    C-KQ2ZD06-02S 1/4 21.5 44 38 43
    C-KQ2ZD06-03S 3/8 17 23.5 46 40 57
    Ø8 C-KQ2ZD08-01S 1/8 19 15.2 17.6 26 21 48 44 18.5 15.9 15.2 76
    C-KQ2ZD08-02S 1/4 24 51 45 72
    C-KQ2ZD08-03S 3/8 25 52 45.5 81
    C-KQ2ZD08-04S 1/2 21 28.5 55.5 47.5 102
    Ø10 C-KQ2ZD10-02S 1/4 21 18.5 20.6 29 26.5 58 52 21 19.2 18.5 111
    C-KQ2ZD10-03S 3/8 27.5 59 53
    C-KQ2ZD10-04S 1/2 30.5 62 54 128
    Ø12 C-KQ2ZD12-02S 1/4 26 20.9 25.2 32 28.5 64.5 58.5 22 21.6 20.9 178
    C-KQ2ZD12-03S 3/8 29.5 65.5 59 167
    C-KQ2ZD¹2-04S 1/2 32.5 68.5 60 179


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2
    Weight
    (g)

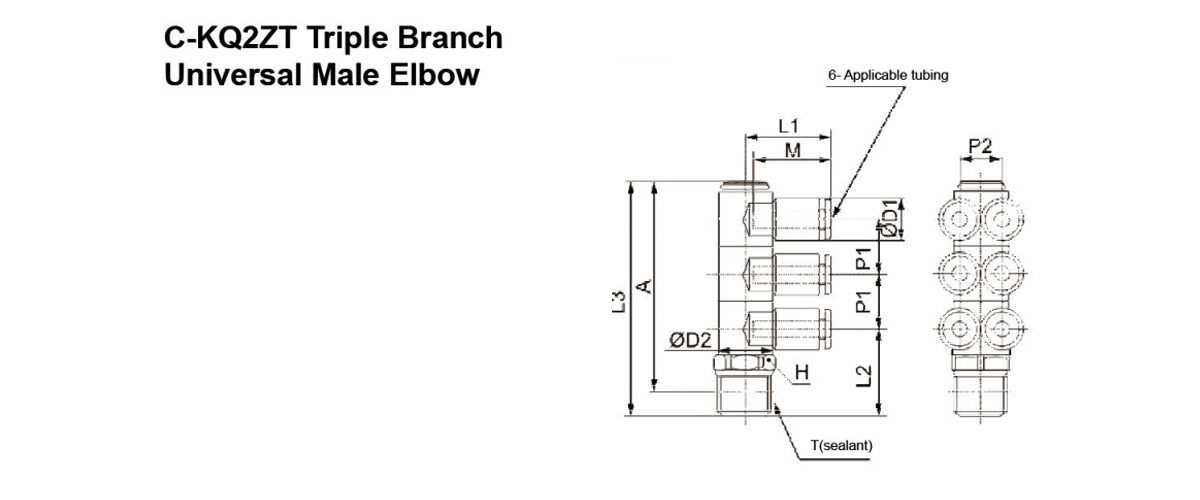

    Ø4 C-KQ2ZT04-01S 1/8 14 10.4 13.4 21 18.5 54.5 50.5 16 13.4 10.4 25
    C-KQ2ZT04-02S 1/4 21.5 57.5 51.5 31
    C-KQ2ZT04-03S 3/8 17 23.5 59.5 53.5 44
    Ø6 C-KQ2ZT06-01S 1/8 14 12.8 13.4 22 18.5 54.5 50.5 17 13.4 12.8 27
    C-KQ2ZT06-02S 1/4 21.5 57.5 51.5 33
    C-KQ2ZT06-03S 3/8 17 23.5 59.5 53.5 46
    Ø8 C-KQ2ZT08-01S 1/8 19 15.2 17.6 26 21 64 60 18.5 15.9 15.2 56
    C-KQ2ZT08-02S 1/4 24 67 61 54
    C-KQ2ZT08-03S 3/8 25 68 61.5 62
    C-KQ2ZT08-04S 1/2 21 28.5 71.5 63.5 85
    Ø10 C-KQ2ZT10-02S 1/4 21 18.5 20.6 29 26.5 77.5 71.5 21 19.2 18.5 83
    C-KQ2ZT10-03S 3/8 27.5 78.5 72 85
    C-KQ2ZT10-04S 1/2 30.5 81.5 73.5 102
    Ø12 C-KQ2ZT12-02S 1/4 26 20.9 25.2 32 28.5 86 80 22 21.6 20.9 134
    C-KQ2ZT12-03S 3/8 29.5 87 80.5 130
    C-KQ2ZT12-04S 1/2 32.5 90 82 141

    Applicable Tubing O.D
    (mm)     		Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

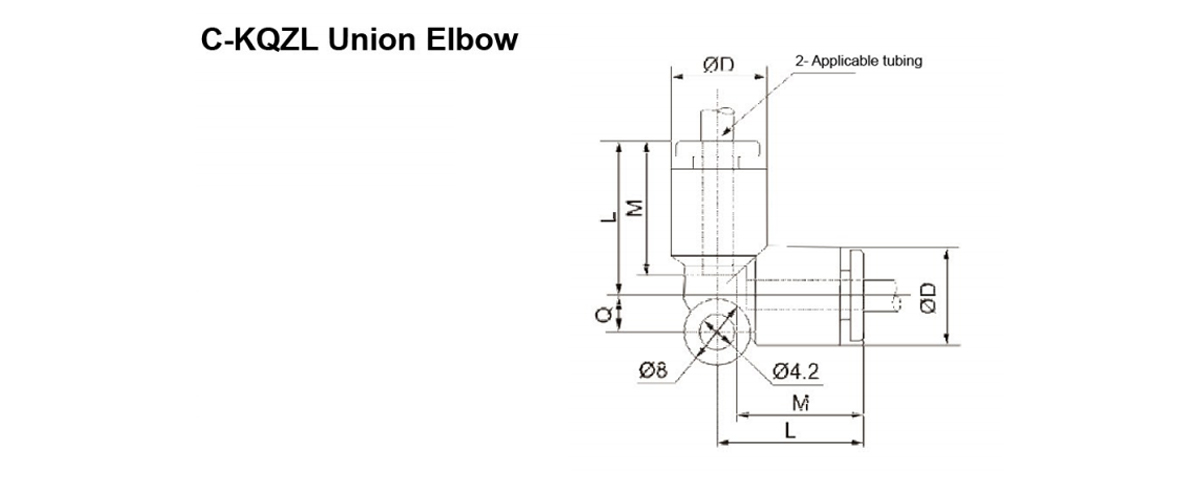

    Ø4 C-KQ2L04-00 10.4 18 4.5 16 4.2 4.2 6
    Ø6 C-KQ2L06-00 12.8 20 5.3 17 11.4 9.0 6
    Ø8 C-KQ2L08-00 15.2 23 6 18.5 21.6 14.9 10
    Ø10 C-KQ2L10-00 18.5 26.5 6.8 21 35.2 25.0 17
    Ø12 C-KQ2L12-00 20.9 28.5 7.5 22 50.2 39.7 21
    Ø16 C-KQ2L16-00 26.5 34 10 25 100 (84) 29

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 Q1 Q2 M p Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-00 10.4 18.5 24 18.5 10 16 10.4 6.0 4.1 6
    Ø6 C-KQ2LU06-00 12.8 21 27.5 20.5 12 17 12.8 13.9 11.0 8
    Ø8 C-KQ2LU08-00 15.2 24 32 24.5 14 18.5 15.2 26.3 18.2 15
    Ø10 C-KQ2LU10-00 18.5 27 36.5 28 16 21 18.5 40.8 29.0 25
    Ø12 C-KQ2LU12-00 20.9 29 40 30 18 22 20.9 57.2 45.2 32

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2L04-99 10.4 8 18 25 14.5 16 4.2 4.2 3
    Ø6 Ø6 C-KQ2L06-99 12.8 10 20 27.5 17 17 11.4 9.0 3
    Ø8 Ø8 C-KQ2L08-99 15.2 12 22.5 31.5 21 18.5 21.6 14.9 5
    Ø10 Ø10 C-KQ2L10-99 18.5 14 25.5 35.5 23.5 21 35.2 25.0 9
    Ø12 Ø12 C-KQ2L12-99 20.9 16 27 37.5 26 22 50.2 39.7 10
    Ø16 Ø16 C-KQ2L16-99 26.5 20.9 34 53 41 25 100 (84) 42

    Applicable
    Tubing O.D
    (mm)
    Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

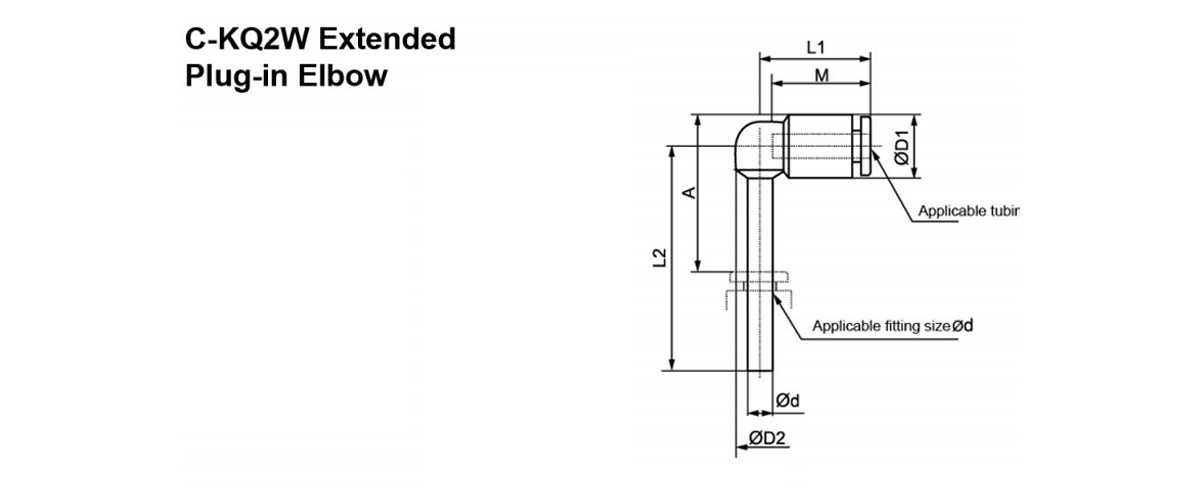

    Ø4 Ø4 C-KQ2W04-99 10.4 10 18.1 32.1 21.5 16 4.2 4.2 13
    Ø6 Ø6 C-KQ2W06-99 12.8 10 20 34.5 24 17 11.4 9.0 14
    Ø8 Ø8 C-KQ2W08-99 15.2 12 23.1 39.5 29 18.5 21.6 14.9 16
    Ø10 Ø10 C-KQ2W10-99 18.5 17 26.6 45.5 33.5 21 35.2 25.0 19
    Ø12 Ø12 C-KQ2W12-99 20.9 17 28.6 47.5 36 22 50.2 39.7 23

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2L04-06(99) 10.4 8 18 33 21.5 16 4.2 4.2 13
    Ø8 C-KQ2L04-08(99) 10 42 29 21
    Ø6 Ø8 C-KQ2L06-08(99) 12.8 10 19.5 37.5 25 17 11.4 9.0 22
    Ø10 C-KQ2L06-10(99) 20 45.5 31 29
    Ø8 Ø10 C-KQ2L08-10(99) 15.2 12 22.5 41.5 28.5 18.5 21.6 14.9 30
    Ø12 C-KQ2L08-12(99) 23 48.5 34 37
    Ø10 Ø12 C-KQ2L10-12(99) 18.5 17 26.5 52 39.5 21 35.2 25.0 39
    Ø12 Ø16 C-KQ2L12-16(99) 20.9 17 28.5 59.5 44.5 22 50.2 39.7 63

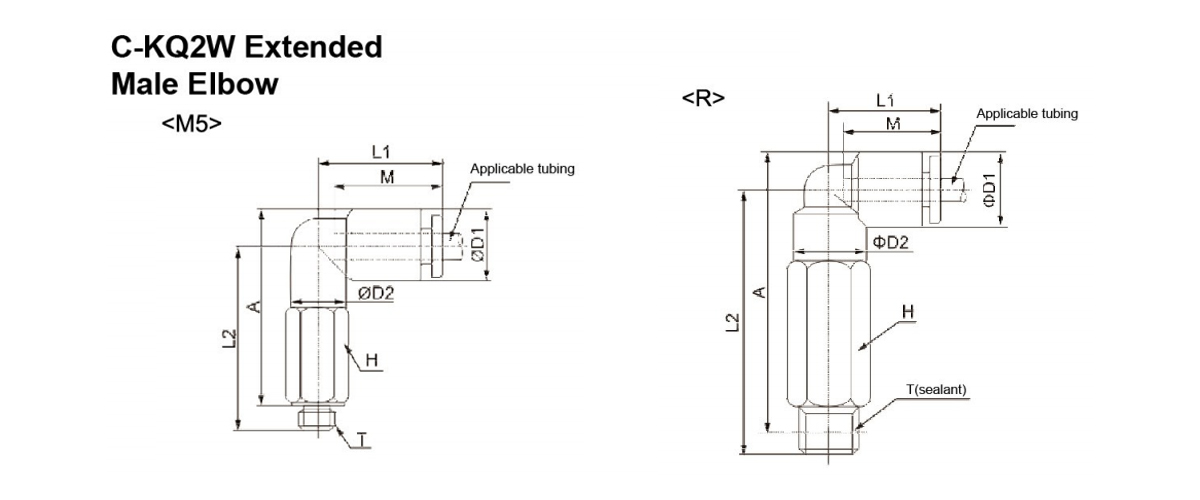

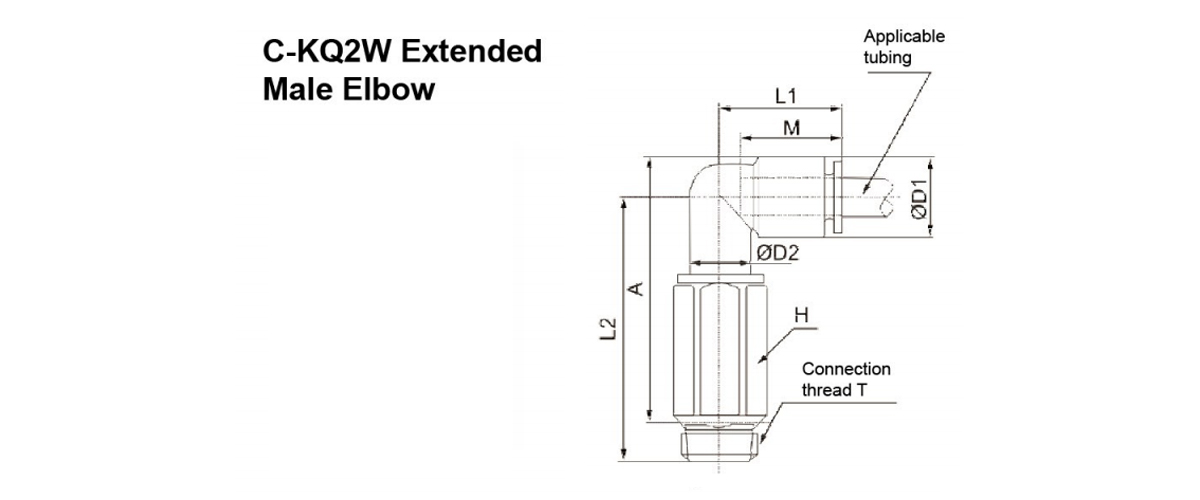

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2W04-01S 18 10 10.4 10 18 37.5 38.5 16 4.0 4.0 23
    C-KQ2W04-02S 1/4 14 43.5 42.5 38
    Ø6 C-KQ2W06-01S 1/8 10 12.8 10 20 40 42.5 17 10.9 8.6 26
    C-KQ2W06-02S 1/4 14 46 46.5 41
    C-KQ2W06-03S 3/8 17 48 48 67
    Ø8 C-KQ2W08-01S 18 12 15.2 12 23 43.5 47 18.5 20.5 14.2 30
    C-KQ2W08-02S 1/4 14 49.5 51 47
    C-KQ2W08-03S 3/8 17 51.5 52.5 74
    Ø10 C-KQ2W10-02S 1/4 17 18.5 17 26.5 58.5 59.5 21 33.5 23.8 66
    C-KQ2W10-03S 8 58.5 61 76
    C-KQ2W10-04S 1/2 22 65 66 145
    Ø12 C-KQ2W12-02S 1/4 17 20.9 17 28.5 57.5 62 22 47.7 37.7 68
    C-KQ2W12-03S 3/8 59.5 63.5 78
    C-KQ2W12-04S 1/2 22 66 68.5 147
    Ø16 C-KQ2W16-03S 3/8 22 26.5 20.9 34 69.5 76 25 71 (71) 101
    C-KQ2W16-04S 72 75 80 100 (84) 105

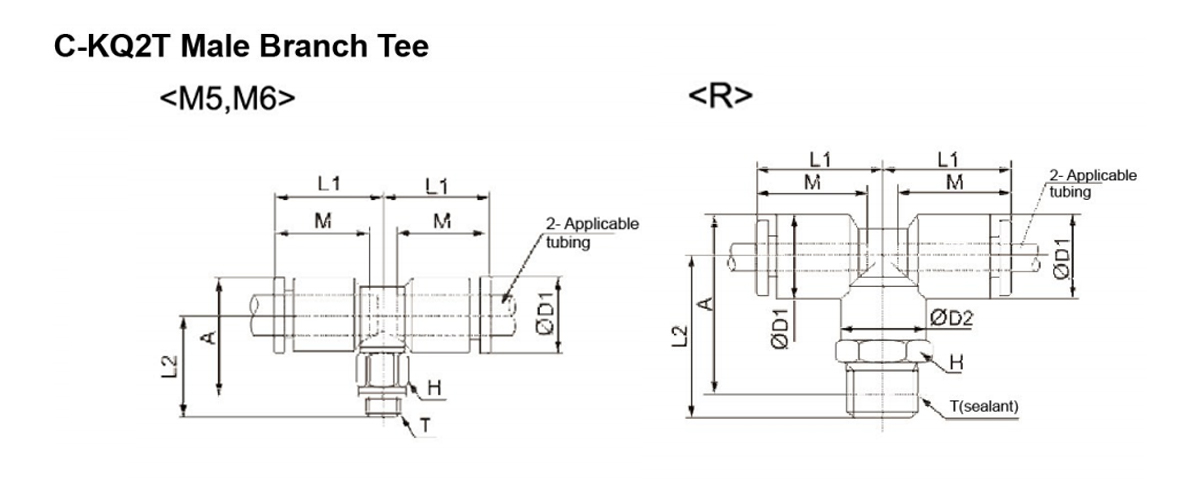

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

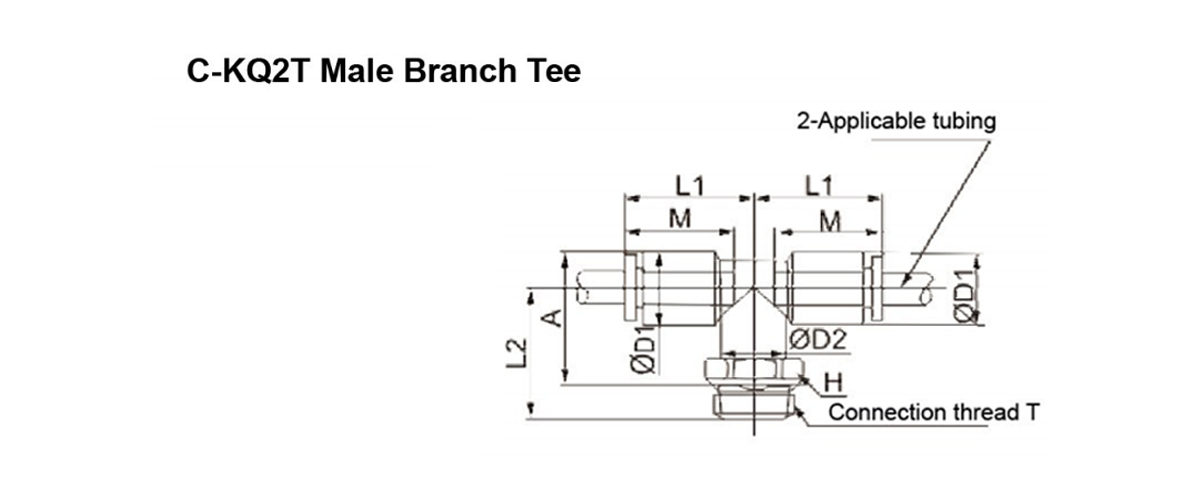

    Ø3.2 C-KQ2T23-01S 1/8 10 9.6 10 17.5 21.5 22.5 15.5 3.4 2.9 10
    C-KQ2T23-02S 1/4 4 25.5 24.5 20
    Ø4 C-KQ2T04-01S 1/8 10 10.4 10 18 22 23 16 6.0 4.1 13
    C-KQ2T04-02S 1/4 14 26 25 19
    Ø6 C-KQ2T06-01S 1/8 10 12.8 10 20 23 25.5 17 13.9 11.0 12
    C-KQ2T06-02S 1/4 14 27 27.5 20
    C-KQ2T06-03S 3/8 17 29 29 34
    Ø8 C-KQ2T08-01S 1/8 12 15.2 12 23 24.5 28 18.5 26.3 18.2 14
    C-KQ2T08-02S 1/4 14 28.5 30 22
    C-KQ2T08-03S 3/8 17 30.5 31.5 36
    Ø10 C-KQ2T10-01S 1/8 17 18.5 17 26.5 27 32 21 40.8 29.0 31
    C-KQ2T10-02S 1/4 30 33 29
    C-KQ2T10-03S 3/8 32 34.5 39
    C-KQ2T10-04S 1/2 22 36 37 66
    Ø12 C-KQ2T12-02S 1/4 17 20.9 17 28.5 31 35.5 22 57.2 45.2 31
    C-KQ2T12-03S 3/8 33 37 41
    C-KQ2T12-04S 1/2 22 37 39.5 38
    Ø16 C-KQ2T16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 71 112
    C-KQ2T16-04S 1/2 40.5 46 100 100 116

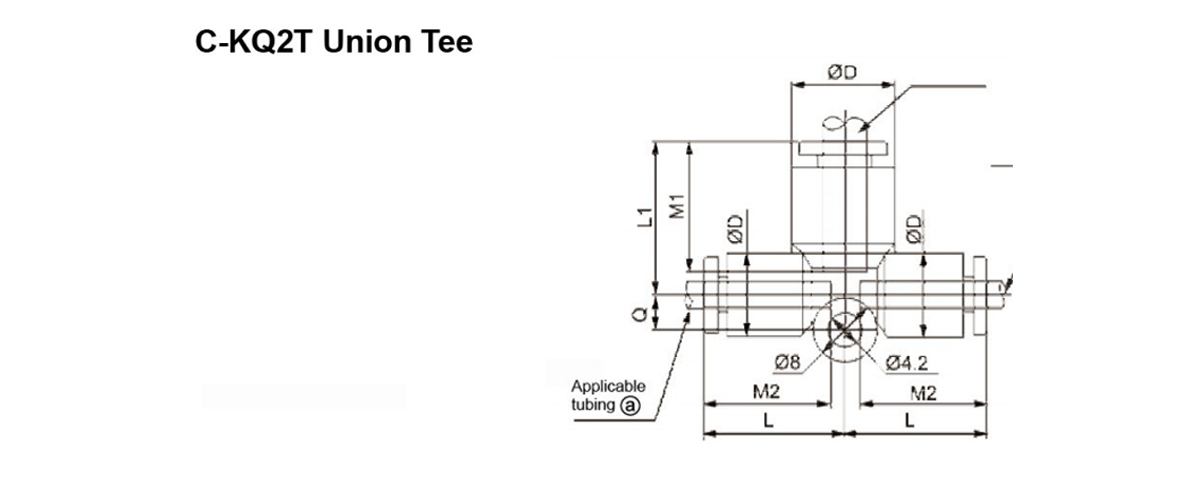

    Applicable Tubing O.D (mm) Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2T04-00 10.4 18 4.5 16 6.4 4.4 7
    Ø6 C-KQ2T06-00 12.8 20 5.3 17 13.4 10.6 10
    Ø8 C-KQ2T08-00 15.2 23 6 18.5 25.6 17.7 15
    Ø10 C-KQ2T10-00 18.5 26.5 6.8 21 40 28.4 25
    Ø12 C-KQ2T12-00 20.9 28.5 7.5 22 57.4 45.4 29
    Ø16 C-KQ2T16-00 26.5 34 10 25 100 (84) 40
    Ø4 Ø6 C-KQ2T04-06 12.8 20 4.5 17 16 7.1 6.5 5
    Ø6 Ø8 C-KQ2T06-08 15.2 23 5.3 18.5 17 16.4 16.4 8
    Ø8 Ø10 C-KQ2T08-10 18.5 26.5 6 21 18.5 36 27.2 14
    Ø10 Ø12 C-KQ2T10-12 20.9 28.5 6.8 22 21 56 44.5 21
    Ø12 Ø16 C-KQ2T12-16 26.5 34 10 25 22 108.5 (92.2) 88
    Ø6 Ø4 C-KQ2T06-04 120.8 20 5.3 16 17 6.4 4.4 10
    Ø8 Ø6 C-KQ2T08-06 15.2 23 6 17 18.5 13.4 10.6 15
    Ø10 Ø8 C-KQ2T10-08 18.5 26.5 7.5 18.5 21 25.6 17.7 25
    Ø12 Ø10 C-KQ2T12-10 20.9 28.5 7.5 21 22 40 28.4 29
    Ø16 Ø12 C-KQ2T16-12 26.5 34 10 22 25 57.4 45.4 90

    Applicable Tubing O.D (mm) Model ØD L Q M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

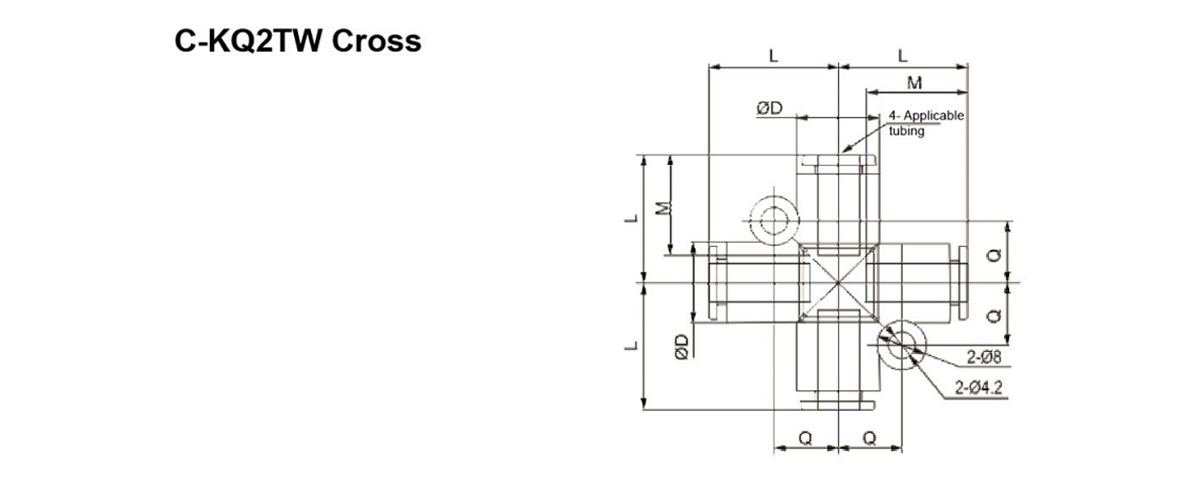

    Ø4 C-KQ2TW04-00 10.4 18 8.7 16 6.4 4.4 9
    Ø6 C-KQ2TW06-00 12.8 20 9.9 17 13.4 10.6 13
    Ø8 C-KQ2TW08-00 15.2 23 11.1 18.5 25.6 17.7 20
    Ø10 C-KQ2TW10-00 18.5 26.5 12.8 21 40 28.4 33
    Ø12 C-KQ2TW12-00 20.9 28.5 13.9 22 57.4 45.4 39

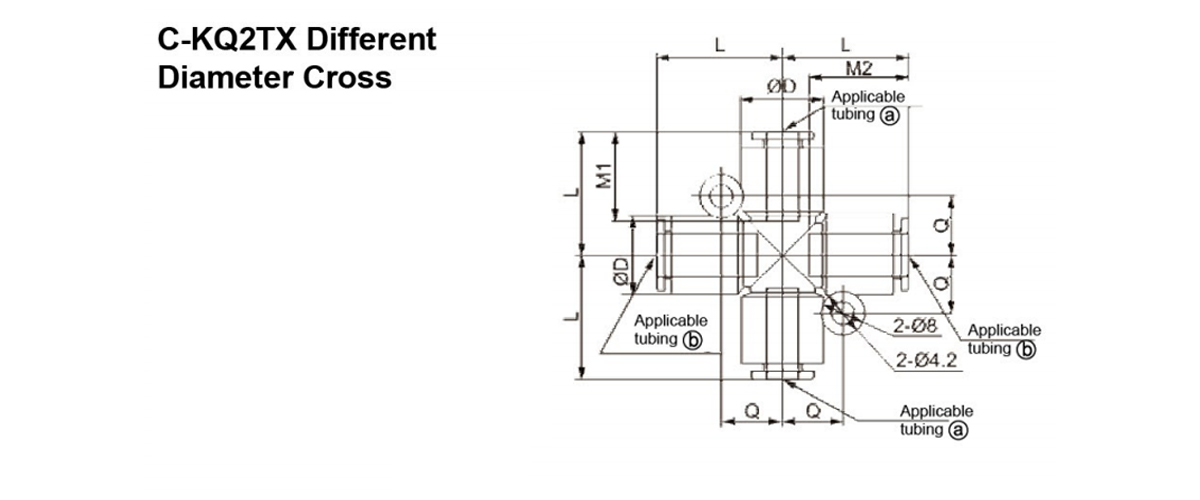

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TX06-08 15.2 23 11.1 18.5 17 13.4 10.6 13
    Ø8 Ø10 C-KQ2TX08-10 18.5 26.5 12.8 21 18.5 25.6 17.7 27
    Ø10 Ø12 C-KQ2TX10-12 20.9 28.5 13.9 22 21 40 28.4 36

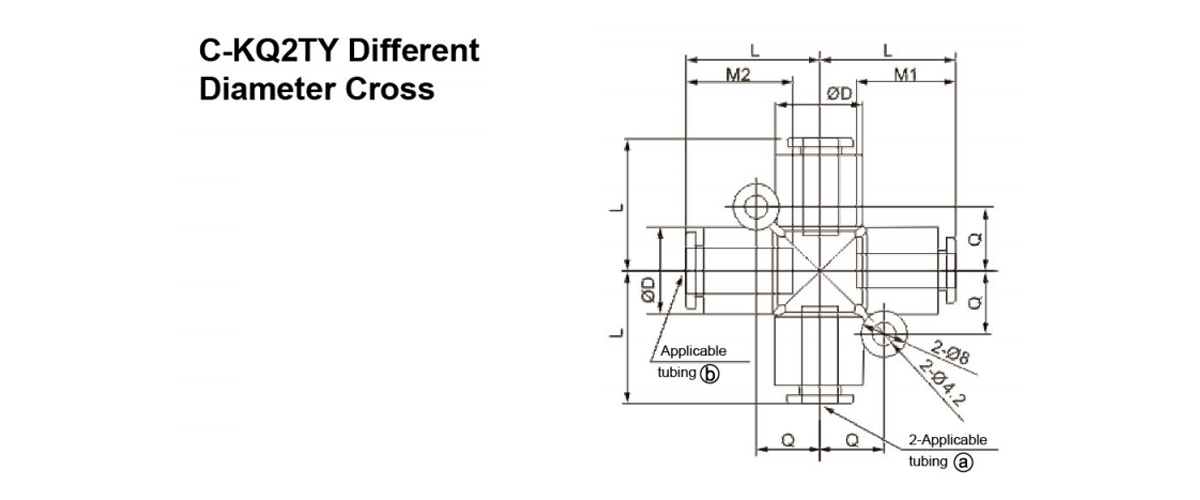

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TY06-08 15.2 23 11.1 17 18.5 13.4 10.6 15
    Ø8 Ø10 C-KQ2TY08-10 18.5 26.5 12.8 18.5 21 25.6 17.7 23
    Ø10 Ø12 C-KQ2TY10-12 20.9 28.5 13.9 21 22 40 28.4 35

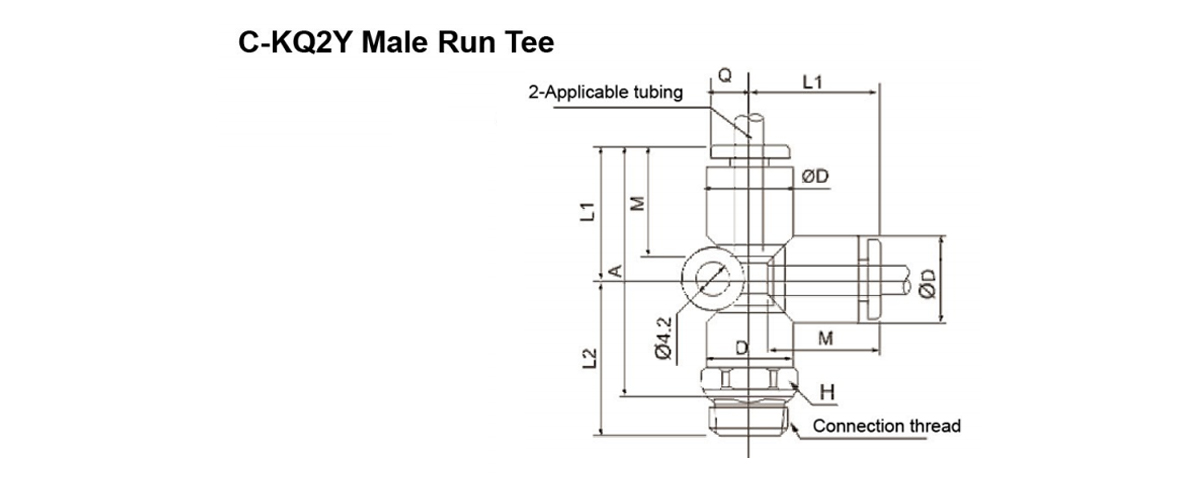

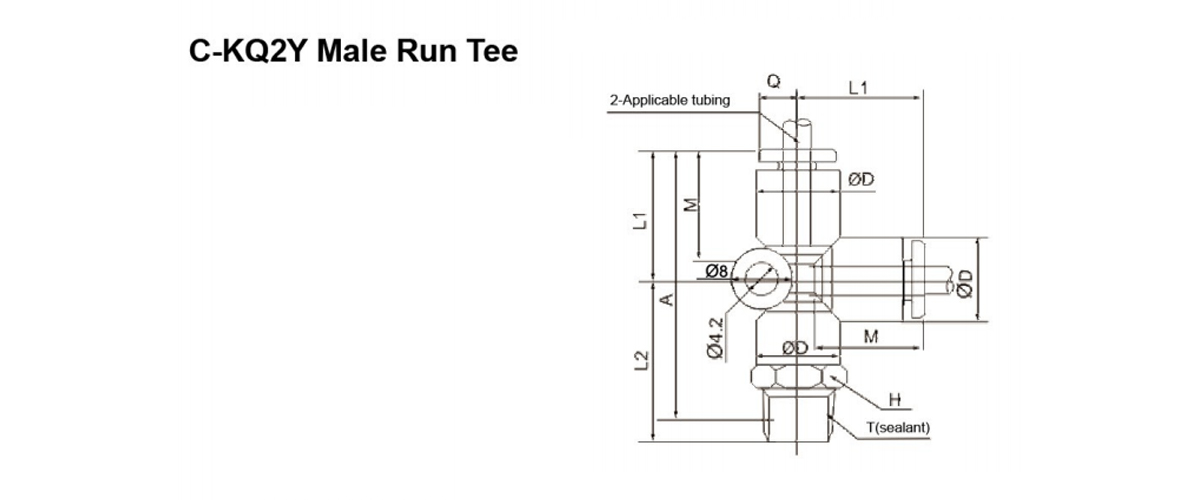

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD Q L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø04 C-KQ2Y 04-01S R1/8 14 10.5 4.6 18.1 22.1 36.1 16.1 6.4 4.4 13
    C-KQ2Y 04-02S R1/4 26.1 38.1 19
    Ø06 C-KQ2Y 06-01S R1/8 12.9 5.4 20.1 23.1 39.1 17.1 13.4 10.6 12
    C-KQ2Y 06-02S R1/4 27.1 41.1 20
    C-KQ2Y 06-03S R3/8 29.1 42.6 34
    Ø08 C-KQ2Y 08-01S R1/8
    17     		15.3 6.1 23.1 24.6 43.6 18.6 25.6 12.7 14
    C-KQ2Y 08-02S R1/4 28.6 45.6 22
    C-KQ2Y 08-03S R3/8 30.6 47.2 36
    Ø10 C-KQ2Y 10-01S R1/8 19 18.6 6.9 26.6 27.1 49.7 21 40 28.4 31
    C-KQ2Y 10-02S R1/4 30.1 50.7 29
    C-KQ2Y 10-03S R3/8 32.1 52.1 39
    C-KQ2Y 10-04S R1/2 22 36.1 54.6 66
    Ø12 C-KQ2Y 12-02S R1/4 21 7.6 28.6 31.1 53.6 22.1 57.4 45.4 31
    C-KQ2Y 12-03S R3/8 33.1 55.2 41
    C-KQ2Y 12-04S R1/2 37.1 57.6 68

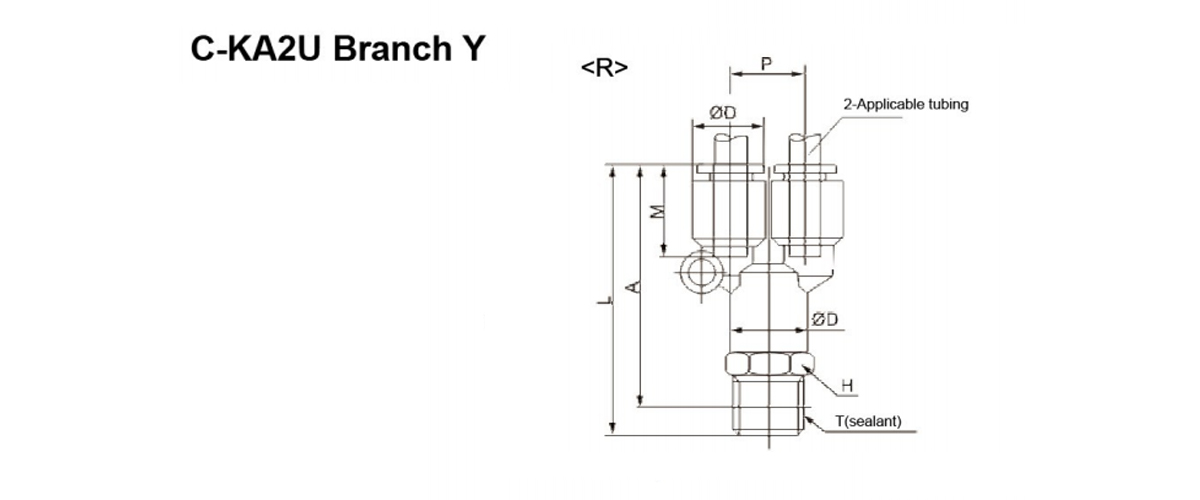

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

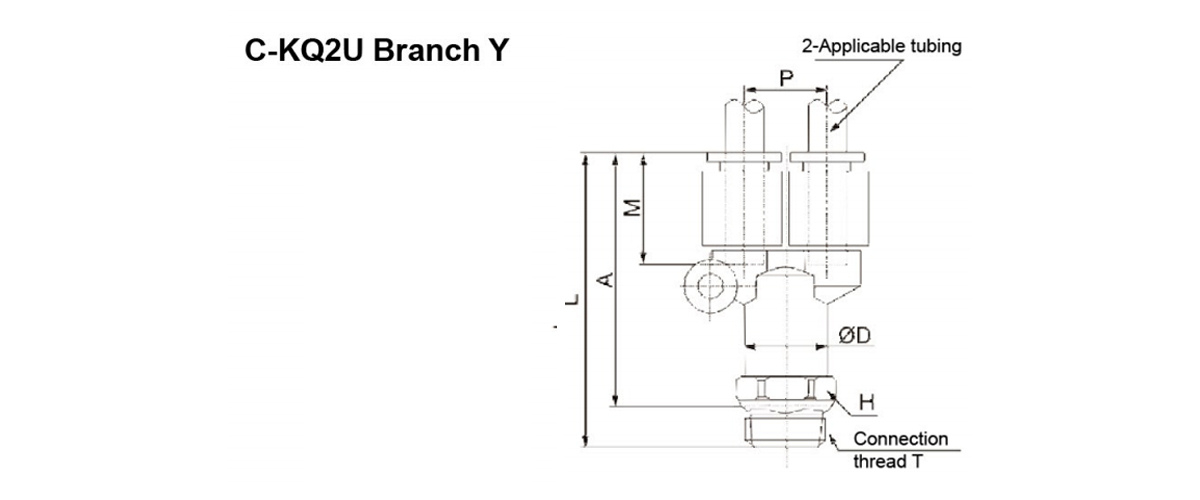

    Ø4 C-KQ2U04-01S 1/8 11 10.4 42 10.4 38 16 4.2 4.2 11
    C-KQ2U04-02S 1/4 14 46 40 20
    Ø6 C-KQ2U06-01S 1/8 13 12.8 45.5 12.8 41.5 17 13.4 10.6 11
    C-KQ2U06-02S 1/4 14 49 43 21
    C-KQ2U06-03S 3/8 17 51 44.5 34
    Ø8 C-KQ2U08-01S 1/8 17 15.2 52.5 15.2 48.5 18.5 25.6 17.7 15
    C-KQ2U08-02S 1/4 55.5 49.5 23
    C-KQ2U08-03S 3/8 56.5 50 35
    Ø10 C-KQ2U10-02S 1/4 19 18.5 61 18.5 55 21 40 28.4 30
    C-KQ2U10-03S 3/8 62 55.5 40
    C-KQ2U10-04S 1/2 22 65 57 65
    Ø12 C-KQ2U12-02S 1/4 22 20.9 64.5 20.9 58.5 22 57.4 45.4 32
    C-KQ2U12-03S 3/8 65.5 59 40
    C-KQ2U12-04S 1/2 68.5 60.5 65
    Ø16 C-KQ2U16-03S 27 26.5 76 26.5 69.5 25 81 (81) 106
    C-KQ2U16-04S 79 71 113 (96) 111

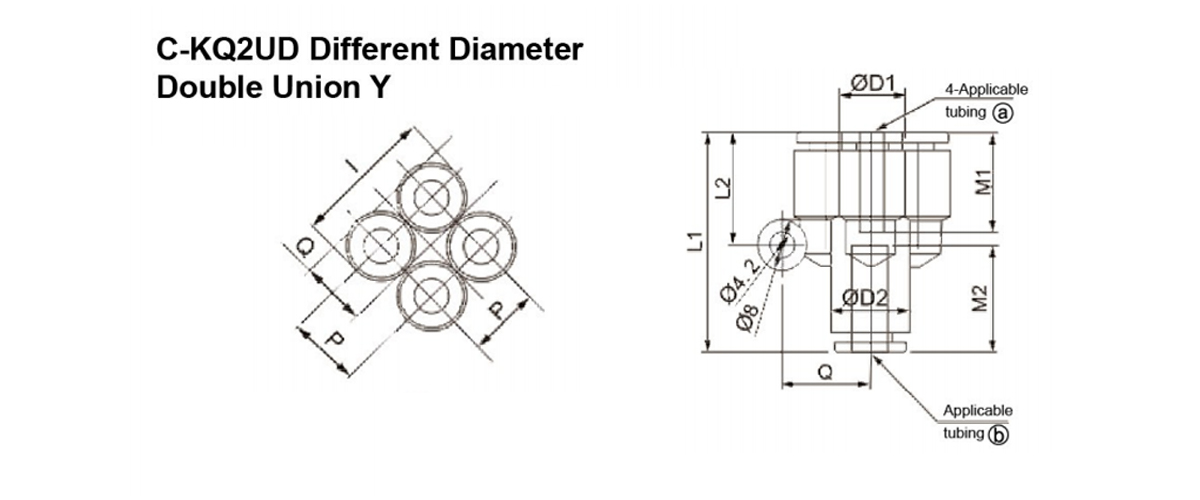

    Applicable
    Tubing O.D
    (mm)     		Model ØD1 ØD2 L1 L2 P I Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø4 Ø6 C-KQ2UD04-06 10.4 12.8 35.5 18.2 10.4 21 9.7 16 17 4.2 4.2 10
    Ø6 Ø8 C-KQ2UD06-08 12.8 15.2 40.5 20.3 12.8 26 11.7 17 18.5 13.4 10.6 17


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L I A Q M P
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

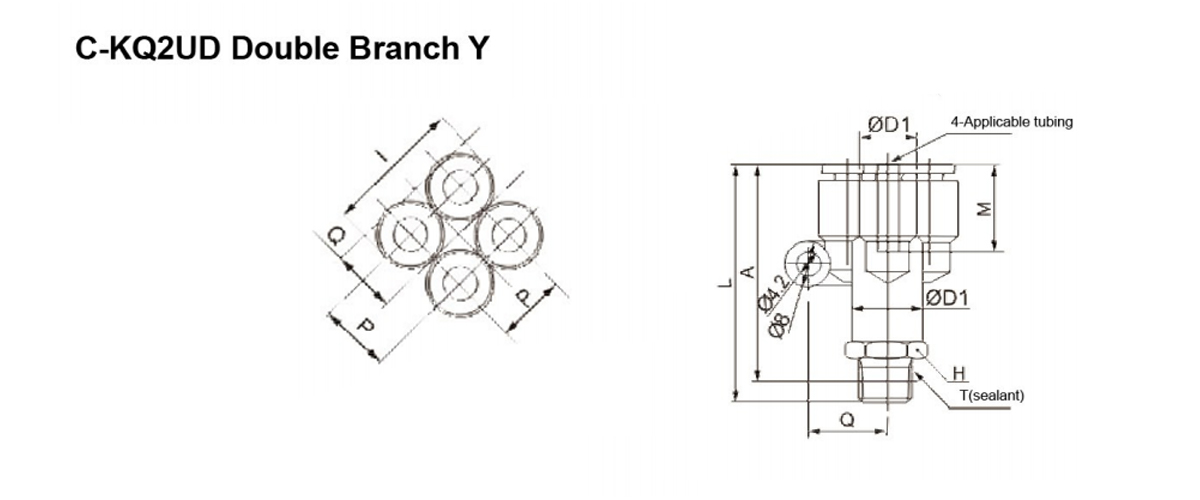

    Ø4 C-KQ2UD04-01S 1/8 13 10.4 12.8 43.5 21 39.5 9.7 16 10.4 4.2 4.2 17
    C-KQ2UD04-02S 1/4 14 47 41 25
    Ø6 C-KQ2UD06-01S 1/8 17 12.8 15.2 50.5 26 46.5 11.7 17 12.8 13.4 10.6 29
    C-KQ2UD06-02S 1/4 53.5 47.5

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 P Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane

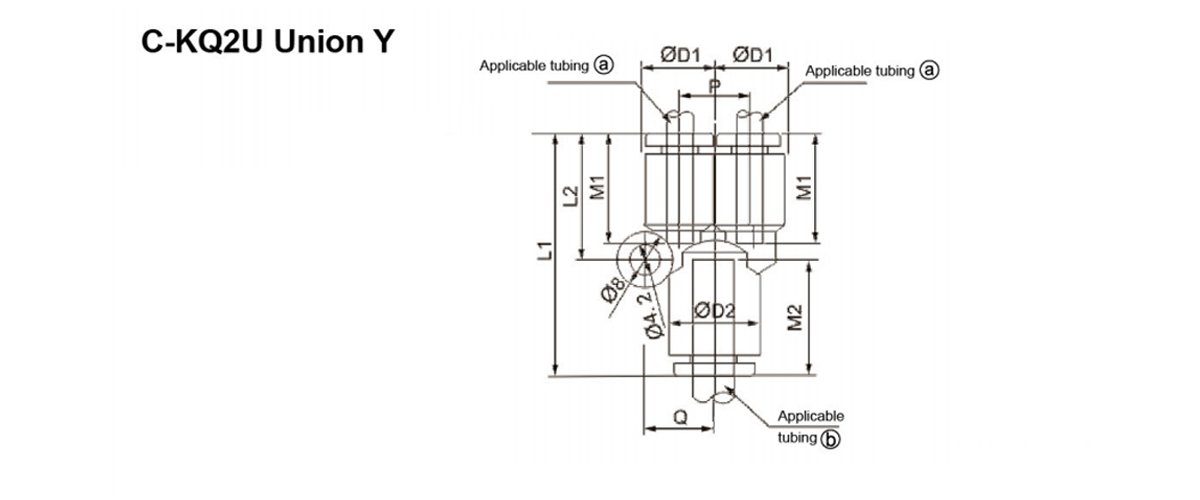

    Ø4 C-KQ2U04-00 10.4 34 18 10.4 9.7 16 4.2 4.2 7
    Ø6 C-KQ2U06-00 12.8 34 20 12.8 11.7 17 13.4 10.6 9
    Ø8 C-KQ2U08-00 15.2 42.5 24.5 15.2 13.7 18.5 25.6 17.7 11
    Ø10 C-KQ2U10-00 18.5 48 27.5 18.5 16.1 21 40 28.4 16
    Ø12 C-KQ2U12-00 20.9 51 30 20.9 18.1 22 57.4 45.4 23
    Ø16 C-KQ2U16-00 26.5 61.5 36.5 26.5 23 25 113 (96) 54
    Ø4 Ø6 C-KQ2U04-06 12.8 35 18 10.4 9.7 16 17 4.2 4.2 6
    Ø6 Ø8 C-KQ2U06-08 15.2 39.5 20 12.8 11.7 17 18.5 13.4 10.6 11
    Ø8 Ø10 C-KQ2U08-10 18.5 45 24.5 15.2 13.7 18.5 21 25.6 17.1 18
    Ø10 Ø12 C-KQ2U10-12 20.9 49 27.5 18.5 16.1 21 22 40 28.4 27
    Ø12 Ø16 C-KQ2U12-16 26.5 66.5 41.5 26.5 23 22 25 57.4 45.4 100
    Ø6 Ø4 C-KQ2U06-04 12.8 35 18 10.4 9.7 17 16 4.2 4.2 6
    Ø8 Ø6 C-KQ2U08-06 15.2 39.5 20 12.8 11.7 18.5 17 13.4 10.6 11
    Ø10 Ø8 C-KQ2U10-08 18.5 45 24.5 15.2 13.7 21 18.5 25.6 17.1 18
    Ø12 Ø10 C-KQ2U12-10 20.9 49 27.5 18.5 16.1 22 21 40 28.4 27
    Ø16 Ø12 C-KQ2U16-12 26.5 66.5 41.5 26.5 23 25 22 57.4 45.4 100


    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD L1 L2 P Q A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

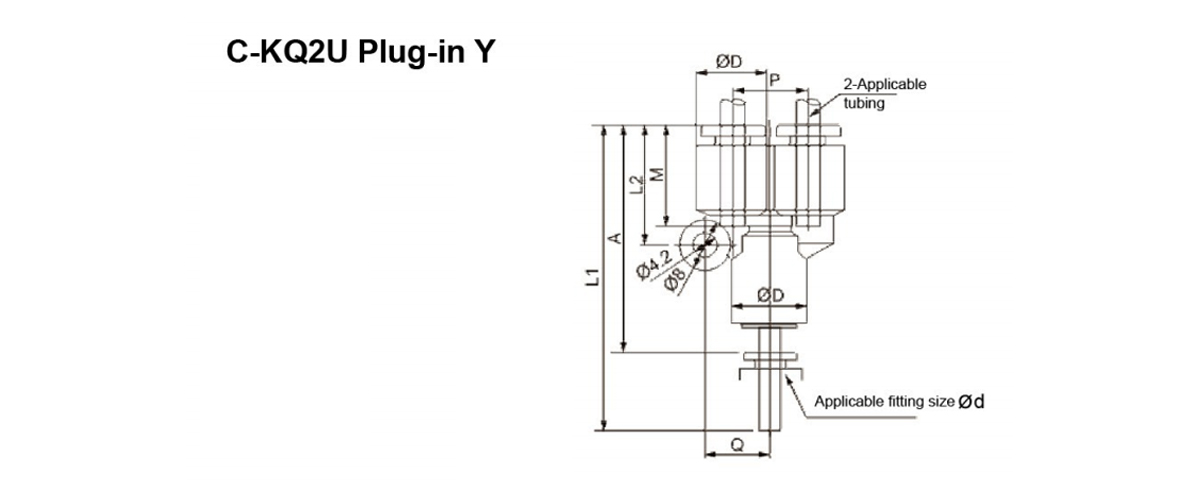

    Ø4 Ø4 C-KQ2U04-99 10.4 51.5 18 10.4 9.7 35.5 16 4.2 4.2 22
    Ø6 Ø6 C-KQ2U06-99 12.8 55.5 20 12.8 11.7 38.5 17 13.4 10.6 28
    Ø8 Ø8 C-KQ2U08-99 15.2 64.5 24.5 15.2 13.7 46 18.5 25.6 17.7 21
    Ø10 Ø10 C-KQ2U10-99 18.5 71.5 27.5 18.5 16.1 50.5 21 40 28.4 36
    Ø12 Ø12 C-KQ2U12-99 20.9 75.5 30 20.9 18.1 53.5 22 57.4 45.4 32
    Ø16 Ø16 C-KQ2U16-99 26.5 90 36.5 26.5 23 65 25 113 (96) 88

    Applicable
    Tubing
    (mm)
    Applic-
    able Fitting
    Size
    XD     		Model ØD1 ØD2 L1 L2 I Q A P M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

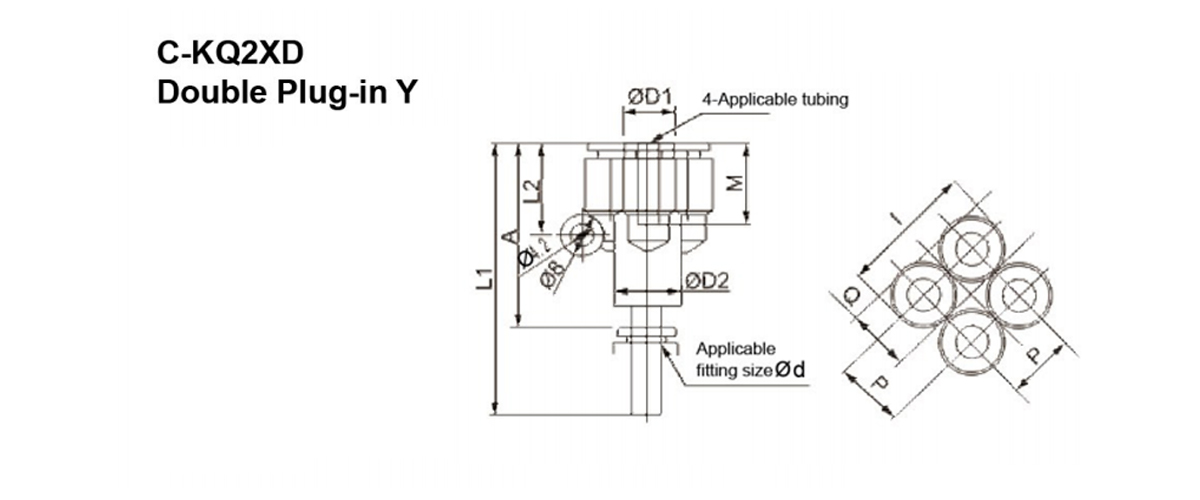

    Ø4 Ø6 C-KQ2XD04-06 10.4 12.8 54 18.2 21 9.7 37 10.4 16 4.2 4.2 10
    Ø6 88 C-KQ2XD06-08 12.8 15.2 62.5 20.3 26 11.7 44 12.8 17 13.4 10.6 23


    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD1 ØD2 L1 L2 A P Q M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

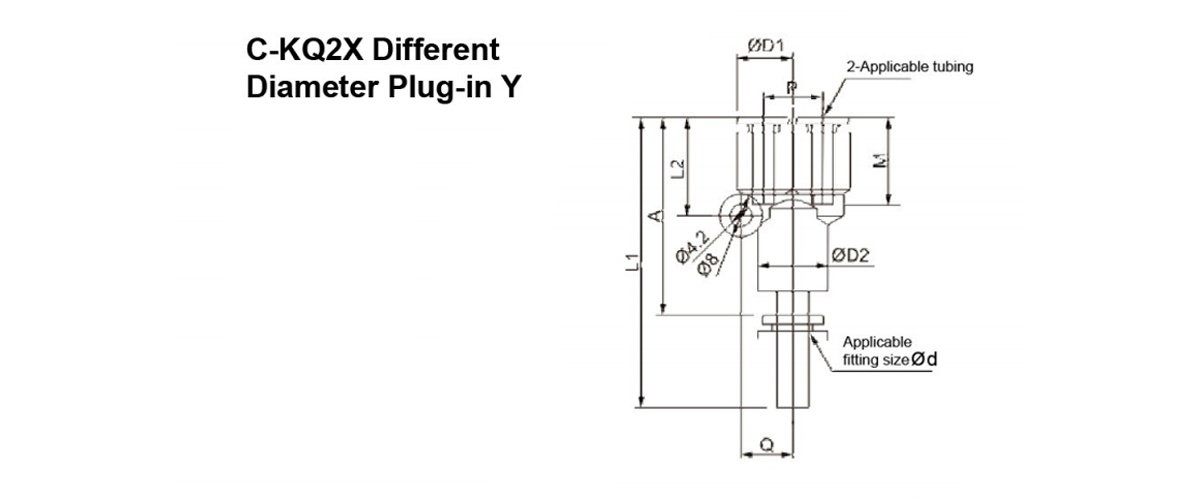

    Ø4 Ø6 C-KQ2X04-06 10.4 12.8 53.5 18.5 36.5 10.4 9.7 16 4.2 4.2 17
    Ø6 Ø8 C-KQ2X06-08 12.8 15.2 61.5 20.5 43 12.8 11.7 17 13.4 10.6 28
    Ø8 Ø10 C-KQ2X08-10 15.2 18.5 68.5 24.5 47.5 15.2 13.7 18.5 25.6 17.1 38
    Ø10 Ø12 C-KQ2X10-12 18.5 20.9 73.5 27.5 51.5 18.5 16.1 21 40 28.4 52

    Applicable Tubing
    (mm)     		Model L M1 M2 ØD Weight
    (g)
    ⓐ ⓑ

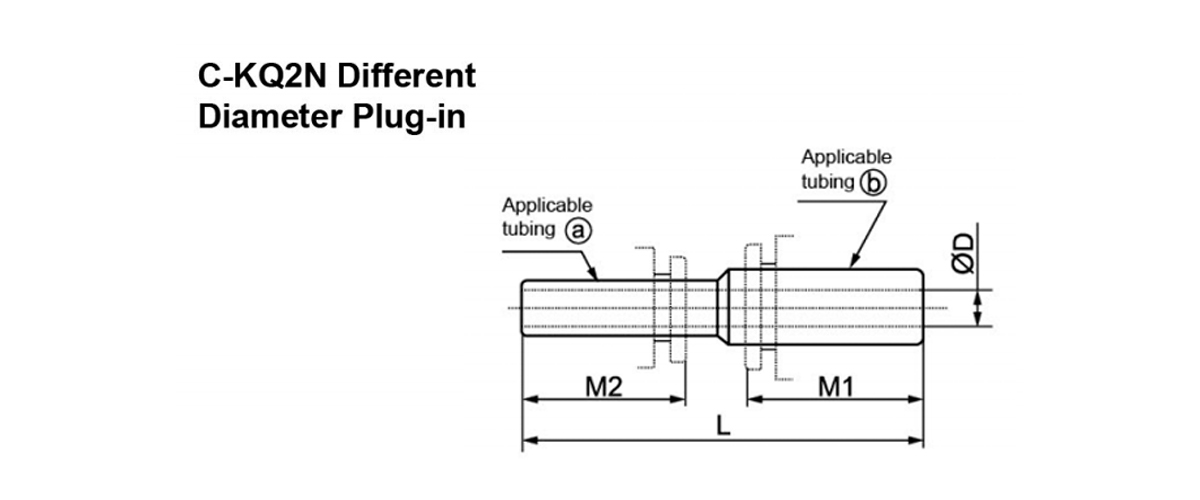

    Ø4 Ø6 C-KQ2N04-06 38 17 16 2.5 2
    Ø6 Ø8 C-KQ2N06-08 42 18.5 17 4 2
    Ø8 Ø10 C-KQ2N08-10 47 21 18.5 6 13.2
    Ø10 Ø12 C-KQ2N10-12 51 22 21 8 18.2

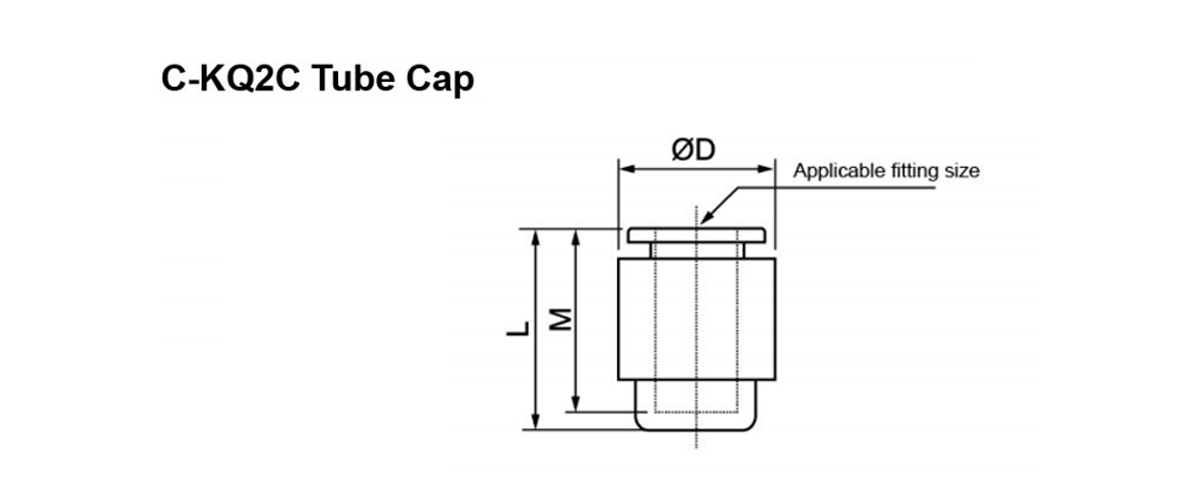

    Applicable Tubing
    (mm)     		Model ØD L M
    Weight
    (g)
    Ø4 C-KQ2C04-00 10.4 17 16 3
    Ø6 C-KQ2C06-00 12.8 18.5 17 3
    Ø8 C-KQ2C08-00 15.2 20.5 18.5 4
    Ø10 C-KQ2C10-00 18.5 23 21 6
    Ø12 C-KQ2C12-00 20.9 24 22 8

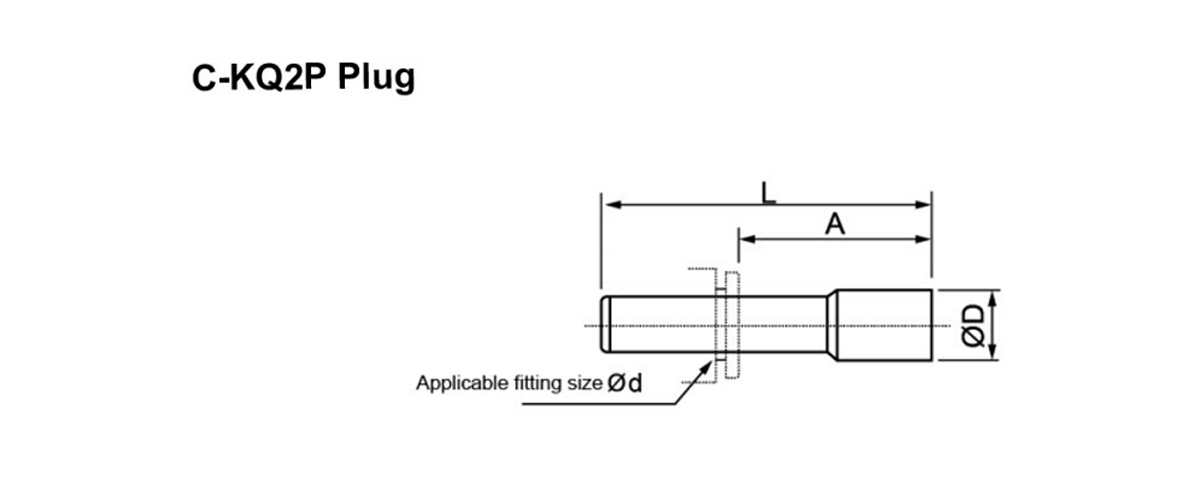

    Applicable
    Fitting Size
    ØD     		Model ØD L A Weight
    (g)
    Ø4 C-KQ2P-04 6 32 16 1
    Ø6 C-KQ2P-06 8 35 18 1
    Ø8 C-KQ2P-08 10 39 20.5 2
    Ø10 C-KQ2P-10 12 43 22 3.5
    Ø12 C-KQ2P-12 14 45.5 24 5

    Applicable
    Tubing
    (mm)     		Applicable
    Fitting Size
    ØD     		Model ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

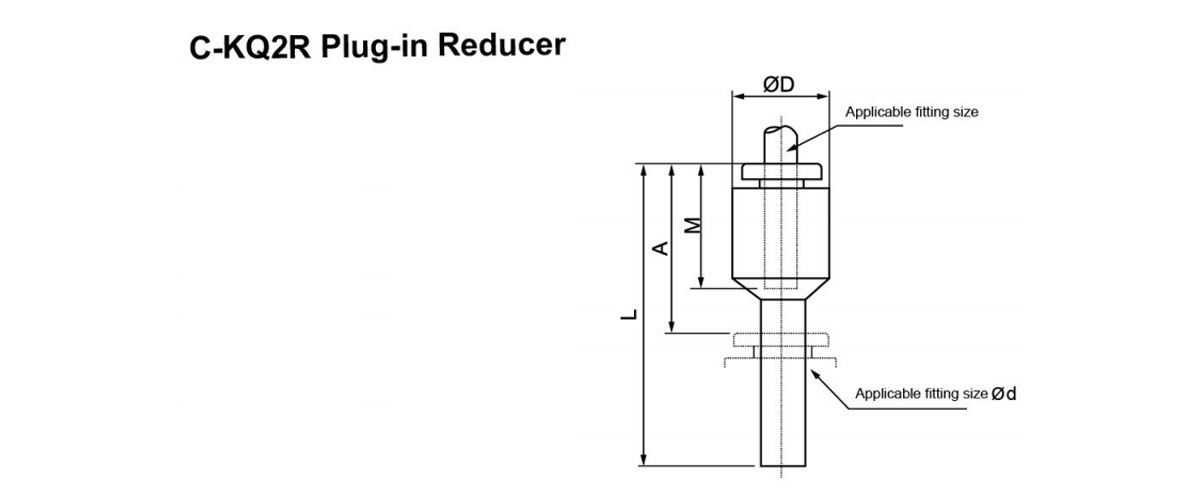

    Ø4 Ø6 C-KQ2R04-06 10.4 34.5 17.5 15 5.6 4 1.8
    88 C-KQ2R04-08 36.5 18 2.0
    Ø10 C-KQ2R04-10 12.8 39.5 18.5 3.3
    Ø6 Ø4 C-KQ2R06-04 12.8 37 21 17 4 4 2.5
    88 C-KQ2R06-08 12.8 37 18.5 13.1 10.4 2.5
    Ø10 C-KQ2R06-10 39.5 18.5 3
    Ø12 C-KQ2R06-12 15.2 42 20 4.7
    Ø8 Ø10 C-KQ2R08-10 15.2 41 20 18.5 26.1 18.0 4.0
    Ø12 C-KQ2R08-12 42 4.6
    Ø10 Ø12 C-KQ2R10-12 18.5 44.5 23 21 41.5 32.8 33

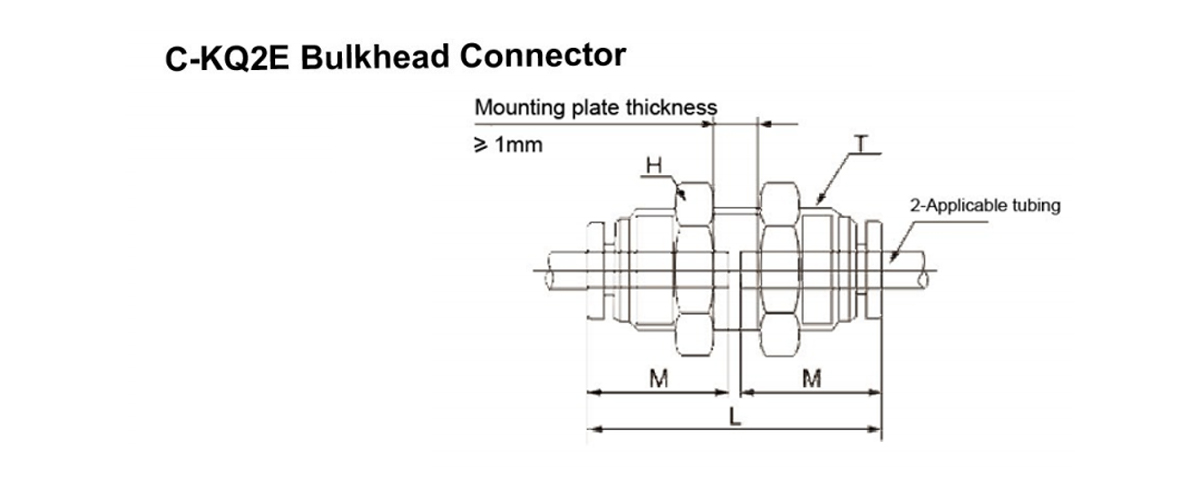

    Applicable
    Tubing
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    φ4 C-KQ2E04-00 M12×1 14 32.5 13 16 5.6 4 26
    Φ6 C-KQ2E06-00 M¹4×1 17 34.5 15 17 13.1 10.4 33
    φ8 C-KQ2E08-00 M16×1 19 38 17 18.5 26.1 18.0 52
    φ10 C-KQ2E10-00 M20×1 24 42.5 21 21 41.5 29.5 70
    φ12 C-KQ2E12-00 M22×1 27 44 23 22 58.3 46.1 90
    Φ16 C-KQ2E16-00 M28×1.5 32 51 29 28 113 (96) 115

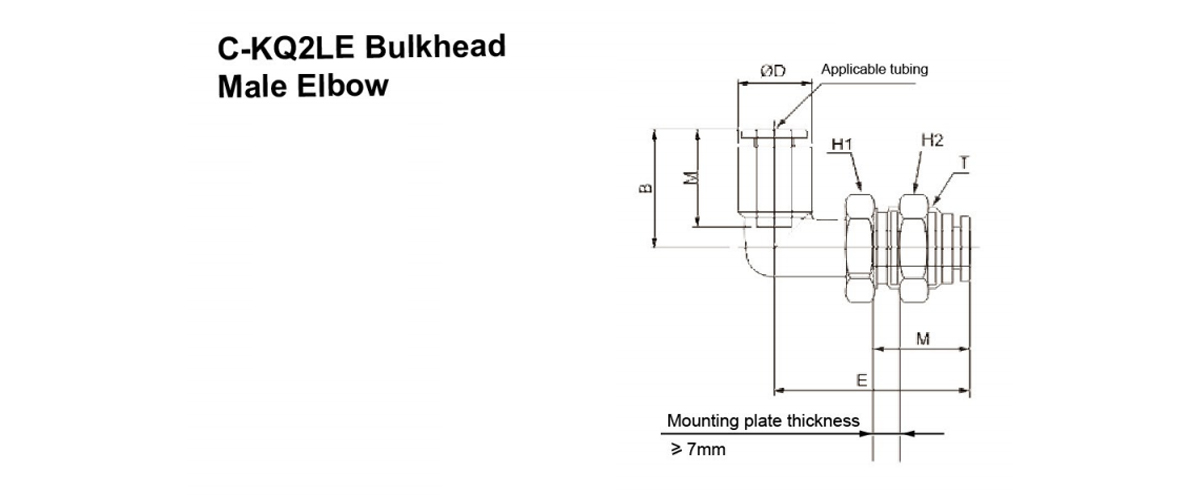

    Applicable
    Tubing
    (mm)     		Model Connection Thread T
    H1
    Width
    Across
    Flats
    H2
    Width
    Across
    Flats     		B E ØD
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LE04-00 M12×1 14 14 18.5 31 10.4 13 16 4.2 4.2 18
    Ø6 C-KQ2LE06-00 M14×1 17 17 20.5 34 12.8 15 17 11.4 9.0 25
    Ø8 C-KQ2LE08-00 M16×1 17 19 23.5 38.5 15.2 17 18.5 21.6 14.9 33
    Ø10 C-KQ2LE10-00 M20×1 22 24 26.5 43.5 18.5 21 21 35.2 25.0 63
    Ø12 C-KQ2LE12-00 M22×1 24 27 28.5 45.5 20.9 23 22 50.2 39.7 77

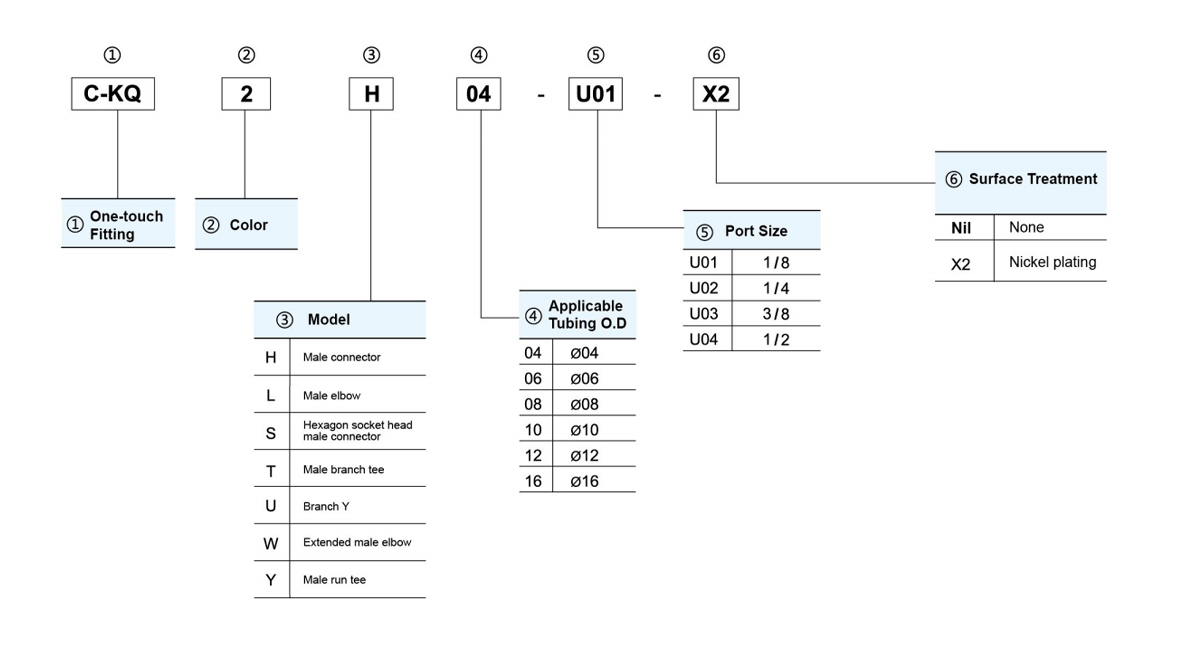

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-U01 18 10 18.5 13.5 16 5.6 5.6 5
    C-KQ2H04-U02 14 14 16.5 10.5 10
    Ø6 C-KQ2H06-U01 1/8 1214 19.5 14.5 17 13.1 13.1 5
    C-KQ2H06-U02 14 13 10
    C-KQ2H06-U03 38 17 17.5 11.5 16
    Ø8 C-KQ2H08-U01 18 14 25 20.5 18.5 26.1 18.0 11
    C-KQ2H08-U02 14 21.5 15.5 27
    C-KQ2H08-U03 3/8 17 19.5 13.5 33
    Ø10 C-KQ2H10-U01 1/8 17 28 23 21 41.5 29.5 17
    C-KQ2H10-U02 14 22 17
    C-KQ2H10-U03 3/8 24 18 14
    C-KQ2H10-U04 12 22 22 14 28
    Ø12 C-KQ2H12-U02 14 19 30.5 24.5 22 58.3 46.1 22
    C-KQ2H12-U03 3/8 25.5 19.5 16
    C-KQ2H12-U04 12 22 24.5 16.5 28
    Ø16 C-KQ2H16-U03 3/8 24 33.5 27.5 24 81 (81) 39
    C-KQ2H16-U04 1/6
    72     		28.5 20.5 113 (96) 25


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2L04-U01 18 10 10.4 10 18 20 20.5 16 4.2 4.2 8
    C-KQ2L04-U02 1/4 14 22 21.5 14
    Ø6 C-KQ2L06-U01 1/8 10 12.8 10 20 21.5 23.5 17 11.4 11.4 9
    C-KQ2L06-U02 14 14 23 15
    C-KQ2L06-U03 3/8 17 24 24.5 23
    Ø8 C-KQ2L08-U01 18 12 15.2 12 23 22.5 25.5 18.5 21.6 14.9 11
    C-KQ2L08-U02 14 14 24.5 26 16
    C-KQ2L08-U03 3/8 17 25.5 27 24
    Ø10 C-KQ2L10-U01 1/8 17 18.5 17 26.5 25 29.5 21 21.6 14.9 24
    C-KQ2L10-U02 14 26.5 30 35.2 25.0 21
    C-KQ2L10-U03 3/8 27 30.5 25
    C-KQ2L10-U04 12 22 30 31.5 45
    Ø12 C-KQ2L12-U02 14 17 20.9 17 28.5 27 31.5 22 50.2 39.7 23
    C-KQ2L12-U03 3/8 28 32.5 27
    C-KQ2L12-U04 12 22 31 33.5 48
    Ø16 C-KQ2L16-U03 3/8 22 26.5 21 33 40.5 33 24 71 (71) 49
    C-KQ2L16-U04 35 100 (84) 50

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    ( mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2T04-U01 18 10 10.4 10 18 20 21.5 16 6.0 6.0 9
    C-KQ2T04-U02 14 14 22 15
    Ø6 C-KQ2T06-U01 1/8 10 12.8 10 20 21.5 23.5 17 13.9 13.9 11
    C-KQ2T06-U02 14 14 23 17
    C-KQ2T06-U03 3/8 17 24 24.5 26
    Ø8 C-KQ2T08-U01 18 12 15.2 12 23 22.5 26 18.5 26.3 18.2 15
    C-KQ2T08-U02 14 14 24.5 20
    C-KQ2T08-U03 3/8 17 25.5 27 28
    Ø10 C-KQ2T10-U01 18 17 18.5 17 26.5 25 29.5 21 40.8 29.0 30
    C-KQ2T10-U02 1/4 26.5 30 27
    C-KQ2T10-U03 3/8 27 30.5 31
    C-KQ2T10-U04 12 22 30 31.5 51
    Ø12 C-KQ2T12-U02 14 17 20.9 17 28.5 27 31.5 22 57.2 45.2 31
    C-KQ2T12-U03 3/8 28 32.5 34
    C-KQ2T12-U04 1/2 22 31 33.5 54
    Ø16 C-KQ2T16-U03 22 26.5 21 33 40.5 33 24 71 (71) 62
    C-KQ2T16-U04 35 100 (100) 63

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-U01 18 11 10.4 40 10.4 36 16 4.2 4.2 11
    C-KQ2U04-U02 1/4 14 42 16
    Ø6 C-KQ2U06-U01 1/8 13 12.8 43.5 12.8 39.5 17 13.4 13.4 14
    C-KQ2U06-U02 1/4 14 45 39 18
    C-KQ2U06-U03 3/8 17 46 40 26
    Ø8 C-KQ2U08-U01 18 17 15.2 50.5 15.2 46.5 18.5 25.6 17.7 27
    C-KQ2U08-U02 14 52 46 25
    C-KQ2U08-U03 3/8 51.5 45.5 28
    Ø10 C-KQ2U10-U02 1/4 19 18.5 57.5 18.5 51.5 21 40 28.4 38
    C-KQ2U10-U03 3/8 36
    C-KQ2U10-U04 1/2 22 59 51 51
    Ø12 C-KQ2U12-U02 14 22 20.9 61 20.9 55 22 57.4 45.4 53
    C-KQ2U12-U03 3/8 52
    C-KQ2U12-U04 62.5 54.5 52

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g )
    Nylon Urethane
    Ø4 C-KQ2W04-U01 1/8 10 10.4 10 18 34.5 35.5 16 6.4 4.0 16
    C-KQ2W04-U02 1/4 14 37 38.5 26
    Ø6 C-KQ2W06-U01 1/8 10 12.8 10 20 38.5 41 17 10.9 10.9 18
    C-KQ2W06-U02 1/4 14 40.5 29
    C-KQ2W06-U03 3/8 17 41.5 42 40
    Ø8 C-KQ2W08-U01 1/8 12 15.2 12 23 43.5 46.5 18 20.5 14.2 28
    C-KQ2W08-U02 1/4 14 45.5 47 35
    C-KQ2W08-U03 3/8 17 46 48 46
    Ø10 C-KQ2W10-U02 1/4 17 18.5


    20.9     		17


    17     		26.5


    28.5     		52.5 56 21


    22     		33.5


    47.7     		23.8



    37.7     		67
    C-KQ2W10-U03 3/8 57
    C-KQ2W10-U04 1/2 22 54.5 98
    Ø12 C-KQ2W12-U02 1/4 17 54 58.5 69
    C-KQ2W12-U03 3/8 59
    C-KQ2W12-U04 22 56 99

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-U01 1/8 3 10 23.5 18.5 16 4.1 3.6 7
    Ø6 C-KQ2S06-U01 1/8 4 11.8 24 19 17 10.0 9.9 9
    C-KQ2S06-U02 1/4 13.5 18 107 10.0 12
    Ø8 C-KQ2S08-U01 18 5 14 27.5 22.5 18.5 17.2 16.2 12
    C-KQ2S08-U02 1/4 6 28 22 23.3 14
    C-KQ2S08-U03 3/8 17 27.5 21.5 24
    Ø10 C-KQ2S10-U01 1/8 5 17 30 25 21 17.2 10.0 18
    C-KQ2S10-U02 1/4 8 29 23 39.0 26.6 17
    C-KQ2S10-U03 3/8 28.5 22.5 19
    C-KQ2S10-U04 1/2 21 29 21 36
    Ø12 C-KQ2S12-U02 1/4 8 19 30.5 25 22 46.0 44.5 20
    C-KQ2S12-U03 3/8 9 31 60.0 22
    C-KQ2S¹2-U04 1/2 21 28.5 20.5 30

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2V04-U01 18 8 10.4 13.4 22 13.5 25.5 20.5 16 2.9 2.9 12
    Ø6 C-KQ2V06-U01 1/8 8 12.8 13.4 24 13.5 25.5 20.5 17 7.5 7.5 13
    C-KQ2V06-U02 1/4 10 15.4 23.5 15.5 28 22 21
    Ø8 C-KQ2V08-U01 18 12 15.2 17.6 28.5 14.5 27.5 22.5 18.5 11.2 2430 2225
    C-KQ2V08-U02 14 16.5 29.5 23.5
    C-KQ2V08-U03 3/8 14 20.6 27.5 18.5 34 28 14.3 47 36
    Ø10 C-KQ2V10-U02 1/4 14 18.5 20.6 31 18.5 34 28 21 27 20.3 35
    C-KQ2V10-U03 3/8 38
    Ø12 C-KQ2V12-U03 3/8 17 20.9 25.2 34 20 26.5 30.5 22 39 30.8 52
    C-KQ2V12-U04 1/12 22.5 39.5 31.5 62

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		D Q L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Y 04-U01 18 11 10.5 4.6 18.1 20.1 34.1 16.1 6.4 6.4 13
    C-KQ2Y 04-U02 1/4 14 22.1 34.1 19
    Ø6 C-KQ2Y 06-U01 1/8 13 12.9 5.4 20.1 21.1 37.1 17.1 13.4 13.4 12
    C-KQ2Y 06-U02 14 14 23.1 37.1 20
    C-KQ2Y 06-U03 3/8 17 24.1 38.1 34
    Ø8 C-KQ2Y 08-U01 1/8 17 15.3 6.1 23.1 22.6 41.6 18.6 25.6 17.7 14
    C-KQ2Y 08-U02 14 24.6 42.1 22
    C-KQ2Y 08-U03 3/8 25.6 43.6 36
    Ø10 C-KQ2Y 10-U02 1/4 19 18.6 6.9 26.6 26.1 47.2 21 40 28.4 29
    C-KQ2Y 10-U03 3/8 27.1 48.1 39
    C-KQ2Y 10-U04 1/2 30.1 48.6 66
    Ø12 C-KQ2Y 12-U02 1/4 22 21 7.6 28.6 27.1 50.1 22.1 57.4 45.4 31
    C-KQ2Y 12-U03 3/8 28.1 51.2 41
    C-KQ2Y 12-U04 1/2 31.1 51.6 68

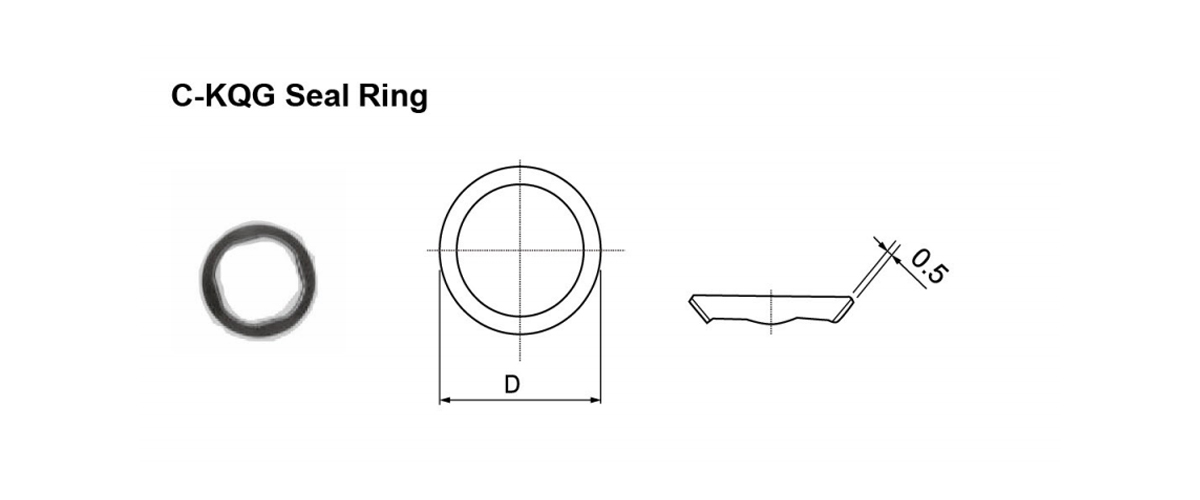

    Applicable Tubing O.D
    (mm)     		Connection Thread T ØD Weight
    (g)
    C-KQG-U01 18 11.8 0.12
    C-KQG-U02 14 15.3 0.19
    C-KQG-U03 3/8 18.7 0.23
    C-KQG-U04 12 23.4 0.34

Súvisiace produkty

Blog a novinky

Naše najnovšie novinky a
blog

Zobraziť viac

Autentická spoľahlivá kvalita prirodzene vyniká.

Voľba pochádza z dôvery a spolupráca z čestnosti.

  • Q: Ako skoro môžeme dostať odpoveď po tom, čo vám pošleme dotaz?

    Odpovieme vám do 24 hodín po obdržaní dopytu v pracovných dňoch.

  • Q: Ste priamy výrobca alebo obchodná spoločnosť?

    Sme výrobca a máme vlastné medzinárodné obchodné oddelenie. Takže môžeme vyrábať a predávať všetko sami. $ $

  • Q: Môžete vyrábať prispôsobené produkty?

    Áno, môžeme vyvíjať a vyrábať produkty podľa výkresov alebo vzoriek poskytnutých zákazníkmi. $ $

  • Q: Ako vaša spoločnosť garantuje kvalitu produktov?

    V prvom rade vykonáme kontrolu po každom procese. Pre hotové výrobky vykonáme 100% kontrolu podľa požiadaviek zákazníkov a medzinárodného štandardu. $ $

  • Q: Kam sa vaše výrobky prevažne vyvážajú?

    Naše výrobky sa vyvážajú hlavne do Nemecka, Spojených štátov amerických, Dánska a viac ako tuctu krajín v Európe a Severnej Amerike $ $
